Removal [12/2022 - ]: Procedure

Refer to REMOVAL [12/2022 - ]

Refer to PROCEDURE - Step 7

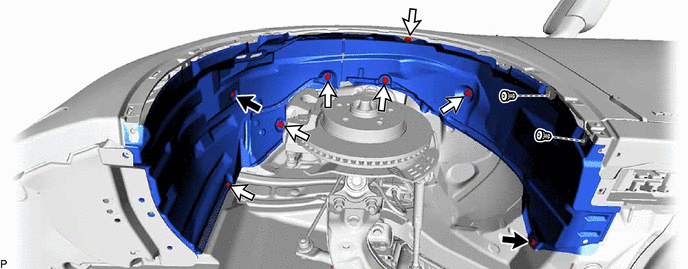

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Screw

   Clip

1. for Type A:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

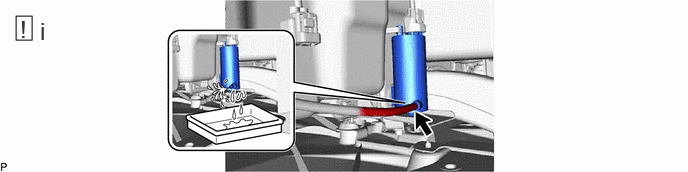

   1. Disconnect the washer hose from the windshield washer motor and pump assembly, and drain the washer fluid.

      HINT:

      Use a container to collect the washer fluid.

2. for Type B:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

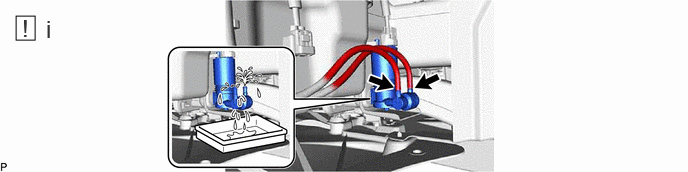

   1. Disconnect the 2 washer hoses from the windshield washer motor and pump assembly, and drain the washer fluid.

      HINT:

      Use a container to collect the washer fluid.

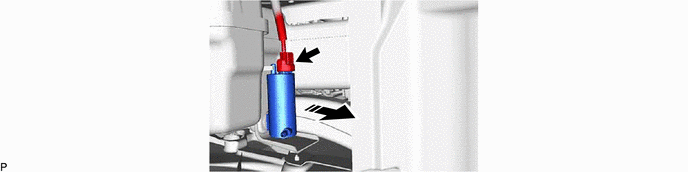

1. for Type A:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   -

   -

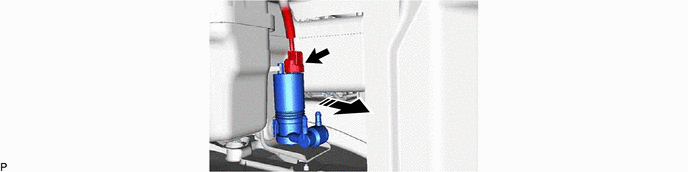

2. for Type B:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   -

   -

HINT:

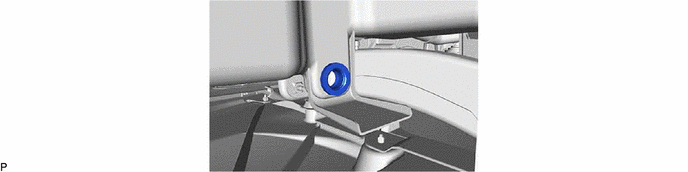

Perform this procedure only when replacement of the windshield washer jar packing is necessary.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
