Removal [12/2022 - ]: Procedure

  1. REMOVE FRONT DOOR TRIM UPPER COVER

    Refer to PROCEDURE - Step 4 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 4 [03/2023 - ]

  2. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
    Refer to PROCEDURE - Step 5 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 5 [03/2023 - ]
  3. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
    Refer to PROCEDURE - Step 6 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 6 [03/2023 - ]
  4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
    Refer to PROCEDURE - Step 7 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 7 [03/2023 - ]
  5. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY

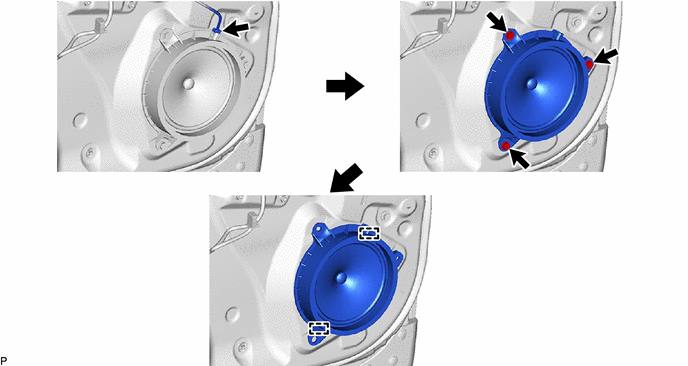

    1. GTY1143105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
