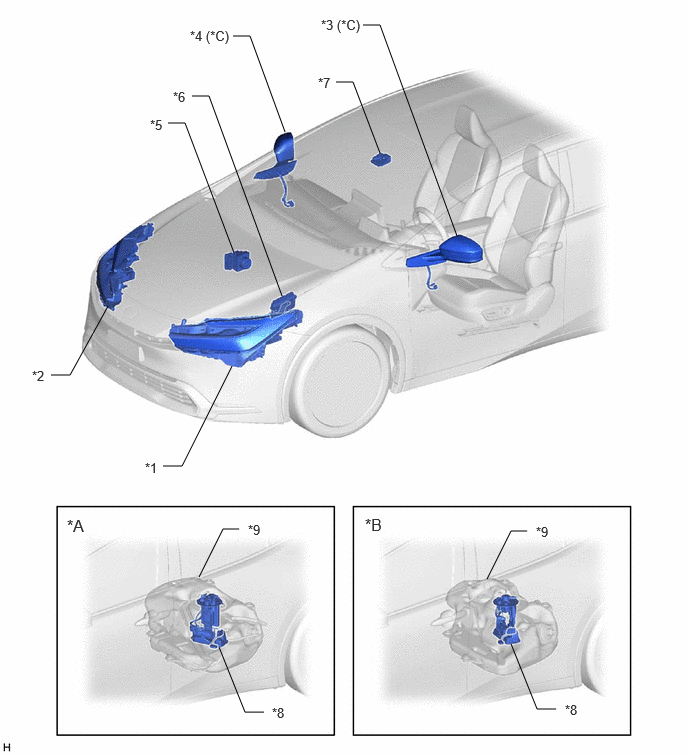

Parts Location [12/2022 - ]: Illustration
| *A | for 2ZR-FXE | *B | for M20A-FXS |
| *C | w/ Side turn signal light assembly | - | - |
| *1 | HEADLIGHT ASSEMBLY LH | *2 | HEADLIGHT ASSEMBLY RH |
| *3 | OUTER REAR VIEW MIRROR ASSEMBLY LH - SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
*4 | OUTER REAR VIEW MIRROR ASSEMBLY RH - SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *5 | BRAKE ACTUATOR ASSEMBLY - NO. 2 SKID CONTROL ECU |
*6 | ECM |
| *7 | FORWARD RECOGNITION CAMERA | *8 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - FUEL SENDER GAUGE ASSEMBLY |
| *9 | FUEL TANK SUB-ASSEMBLY | - | - |

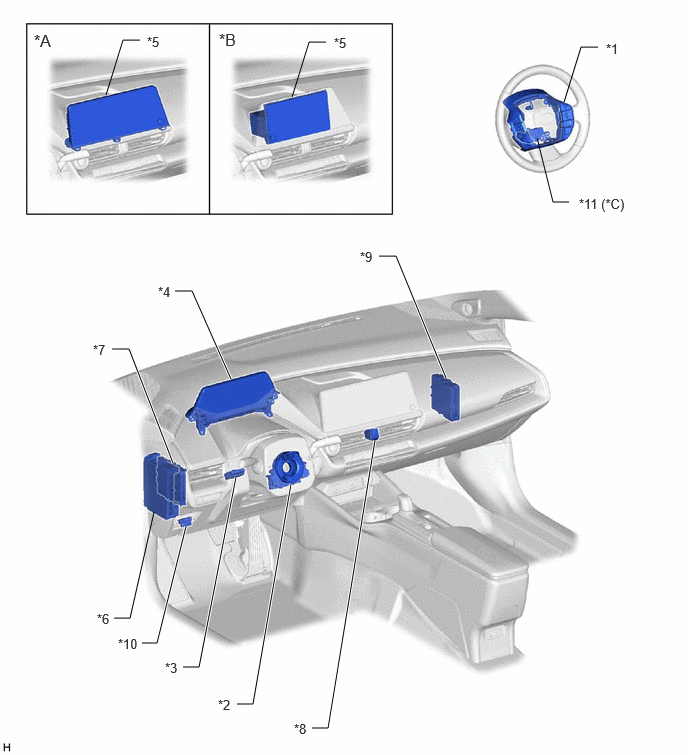

| *A | for 12.3 Inch Display Model | *B | for 8 Inch Display Model |
| *C | w/ Front Cross Traffic Alert | - | - |
| *1 | STEERING PAD SWITCH ASSEMBLY | *2 | SPIRAL CABLE SUB-ASSEMBLY |
| *3 | TRIP SWITCH - ODO/TRIP SWITCH - LIGHT CONTROL RHEOSTAT UP SWITCH - LIGHT CONTROL RHEOSTAT DOWN SWITCH |
*4 | COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY |
| *5 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *6 | POWER DISTRIBUTION BOX ASSEMBLY - ECU-DCC NO. 2 FUSE - METER-IGR FUSE - HAZ FUSE |
| *7 | HYBRID VEHICLE CONTROL ECU | *8 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY |
| *9 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *10 | DLC3 |
| *11 | MULTIPLEX NETWORK STEERING ECU - STEERING VIBRATION ECU |
- | - |
