Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during combination meter removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Combination meter assembly | Update ECU security key | Vehicle Control History (RoB) are stored | Refer to UPDATE ECU SECURITY KEY [12/2022 - ] |
NOTE:
When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

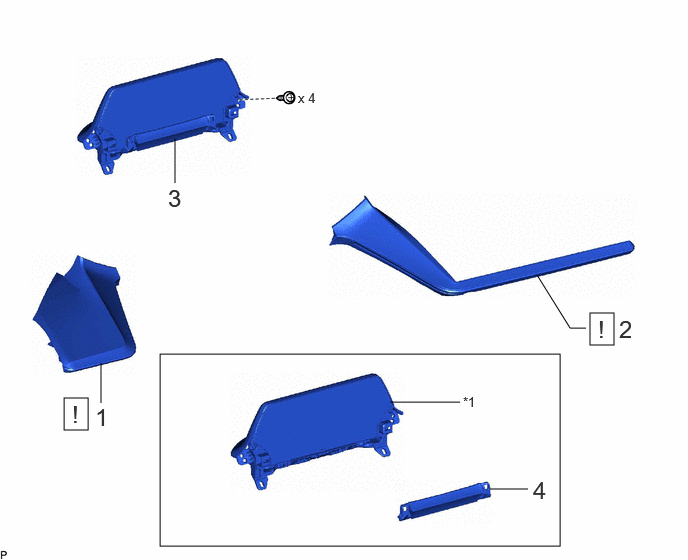

COMPONENTS (REMOVAL)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY | 55410C | See step 1 | - | - |
| 2 | CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY | 55420A | See step 2 | - | - |
| 3 | COMBINATION METER SUB-ASSEMBLY | - | - | - | - |
| 4 | NO. 1 INSTRUMENT CLUSTER FINISH PANEL | 55411G | - | - | - |
| *1 | COMBINATION METER ASSEMBLY | - | - |
