Installation [12/2022 - ]: Procedure

  1. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL
  2. INSTALL COMBINATION METER SUB-ASSEMBLY

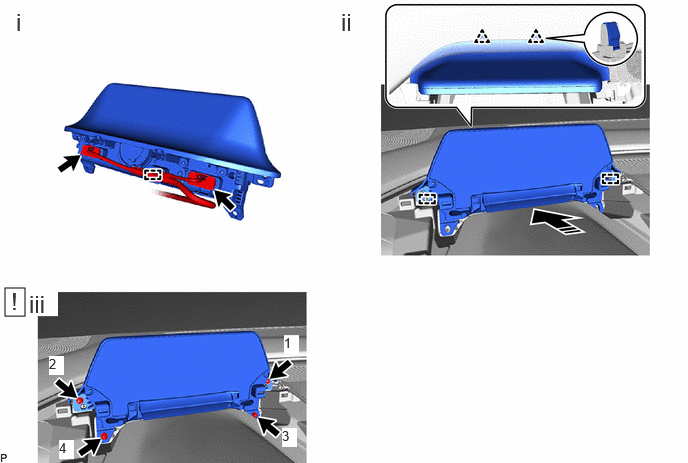

    1. Fig 1: Combination Meter Sub-Assembly Screws Tightening Sequence
      GTY1159208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
      1. Connect each connector and engage the clamp.
      2. Engage the 2 guides and 2 clips as shown in the illustration.
      3. Install the combination meter sub-assembly with the 4 screws in the order shown in the illustration.
  3. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
  4. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
  5. UPDATE ECU SECURITY KEY

    Refer to UPDATE ECU SECURITY KEY [12/2022 - ]
