Removal [12/2022 - ]: Procedure

  1. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

    Refer to PROCEDURE - Step 1 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 1 [03/2023 - ]

  2. SECURE STEERING WHEEL
    Refer to PROCEDURE - Step 2 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 2 [03/2023 - ]
  3. REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY

    Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

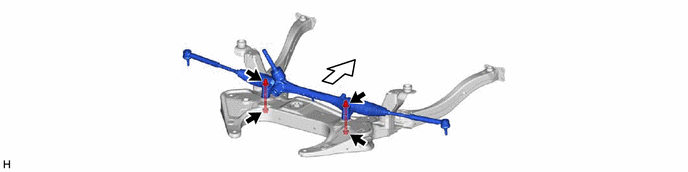

  4. REMOVE STEERING LINK ASSEMBLY
    NOTE:

    Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
    1. GTY1143864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front of the Vehicle - -

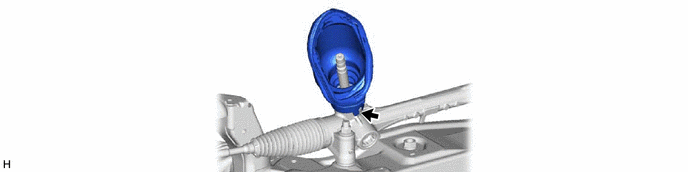

  5. REMOVE NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY
    1. GTY1148859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. SECURE STEERING LINK ASSEMBLY
    1. GTY1145423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST with wrapped in protective tape, secure the steering link assembly in a vise.
        • SST: 09612-00012
  7. REMOVE TIE ROD END SUB-ASSEMBLY LH
    1. GTY1156506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark - -
      1. Put matchmarks on the tie rod end sub-assembly LH and steering gear assembly.
      2. Remove the tie rod end sub-assembly LH and lock nut.
  8. REMOVE TIE ROD END SUB-ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
