Installation [02/2024 - ]: Procedure

INSTALL STEERING COLUMN ASSEMBLY

NOTE:

for Manual Tilt and Manual Telescopic Steering Column:

Be careful not to jam the wire harness between the body and the steering column assembly.
After installing the steering column assembly, check the operation of the tilt mechanism.
If the operation of the tilt mechanism is not smooth or an abnormal noise occurs during operation, loosen the nut and move the bracket backward or forward until the tilt mechanism operates smoothly. Then, tighten the nut and check the operation of the tilt mechanism again.
Tighten the bolt and nut in the following sequence: Temporarily install bolt → tighten nut → tighten bolt.

for Power Tilt and Power Telescopic Steering Column:

Be careful not to jam the wire harness between the body and the steering column assembly.
Tighten the bolt and nut in the following sequence: Temporarily install bolt → tighten nut → tighten bolt.

Torque: 36 N.m (367 kgf/cm, 27 ft.lbf)

INSTALL STEERING INTERMEDIATE SHAFT ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

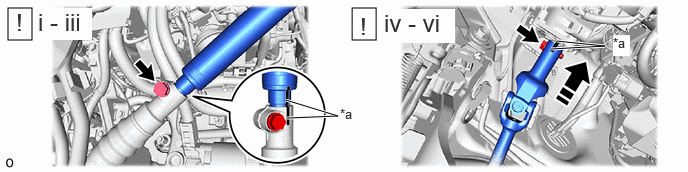

*a	Matchmark	-	-
	Slide in this Direction	-	-

Align the matchmarks on the steering intermediate shaft assembly and No. 2 steering intermediate shaft sub-assembly.
HINT:

Perform this procedure only when replacement of the steering intermediate shaft assembly and No. 2 steering intermediate shaft sub-assembly is necessary.
Install the steering intermediate shaft assembly and No. 2 steering intermediate shaft sub-assembly.
HINT:

Perform this procedure only when replacement of the steering intermediate shaft assembly and No. 2 steering intermediate shaft sub-assembly is necessary.
Install the bolt.
Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

HINT:

Perform this procedure only when replacement of the steering intermediate shaft assembly and No. 2 steering intermediate shaft sub-assembly is necessary.
Align the matchmarks on the steering intermediate shaft assembly and steering column assembly.
Install the steering intermediate shaft assembly to the steering column assembly.
Install the bolt.
Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

CONNECT NO. 2 STEERING INTERMEDIATE SHAFT SUB-ASSEMBLY

Refer to PROCEDURE - Step 7
INSTALL FRONT WHEEL LH
Refer to INSTALLATION [02/2024 - ]
INSTALL NO. 2 AIR DUCT SUB-ASSEMBLY
Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)
INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to INSTALLATION [02/2024 - ]

INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY

NOTE:

Do not replace the spiral cable with sensor sub-assembly with the battery connected and the ignition switch to ON.
Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the battery connected and the ignition switch to ON.
When rotating the spiral cable with sensor sub-assembly to check the operation of the spiral cable with sensor sub-assembly (checking for abnormal noise, checking the DTC, Data List, etc.) make sure to perform the inspection with the steering wheel assembly installed.

HINT: Refer to How to Connect or Disconnect Airbag Connector:Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [02/2024 - ]

INSTALL LOWER STEERING COLUMN COVER SUB-ASSEMBLY

NOTE:

for Power Tilt and Power Telescopic Steering Column:

Do not damage the tilt and telescopic switch.
