Removal [02/2024 - ]: Procedure

  1. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  2. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 7

  3. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 3

  4. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 2

  5. REMOVE CONVERTER WITH CATALYST ASSEMBLY

    Refer to REMOVAL [02/2024 - ]

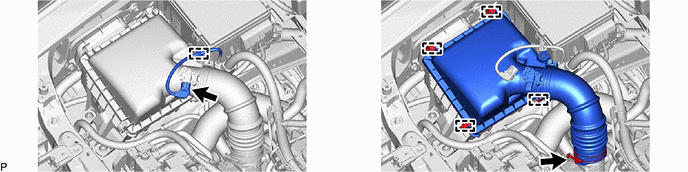

  6. REMOVE AIR CLEANER CAP WITH NO. 1 AIR CLEANER HOSE
    1. GTY1221612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

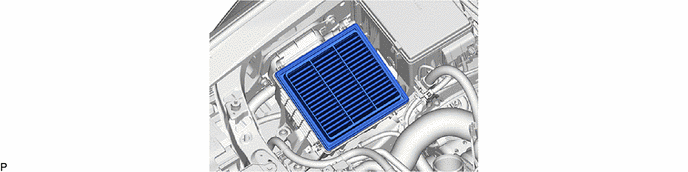

  7. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
    1. GTY1221614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

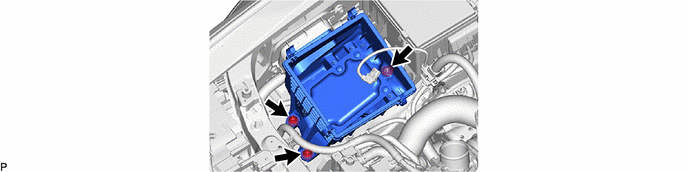

  8. REMOVE AIR CLEANER CASE SUB-ASSEMBLY
    1. GTY1221615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

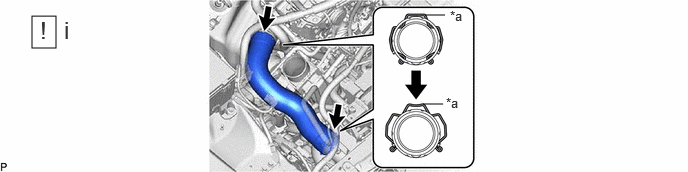

  9. REMOVE NO. 1 AIR HOSE
    1. GTY1189292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer - -
      1. Release the 2 retainers and disconnect the No. 1 air hose from the intercooler assembly and compressor inlet elbow sub-assembly as shown in the illustration.

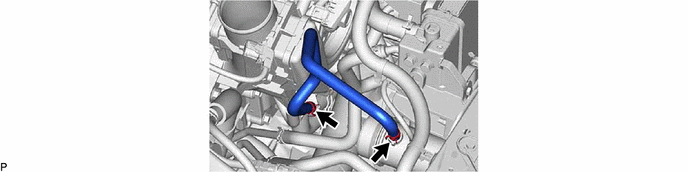

  10. DISCONNECT NO. 2 AIR HOSE
    1. GTY1185279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

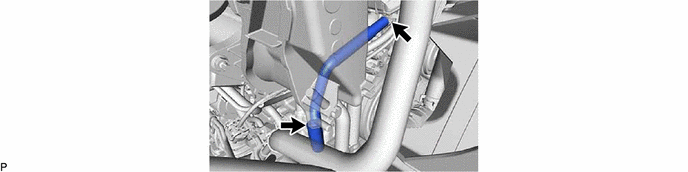

  11. DISCONNECT NO. 3 FUEL VAPOR FEED HOSE
    1. GTY1183011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

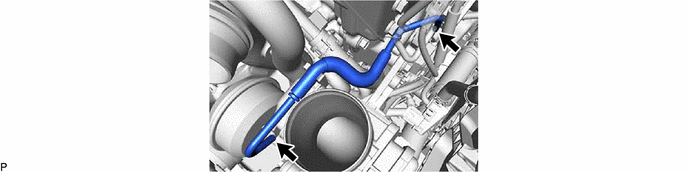

  12. DISCONNECT VACUUM TRANSMITTING HOSE ASSEMBLY
    1. GTY1226304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

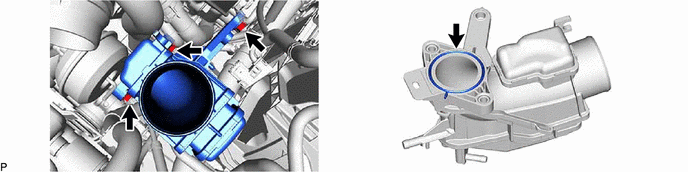

  13. REMOVE COMPRESSOR INLET ELBOW SUB-ASSEMBLY
    1. GTY1221598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

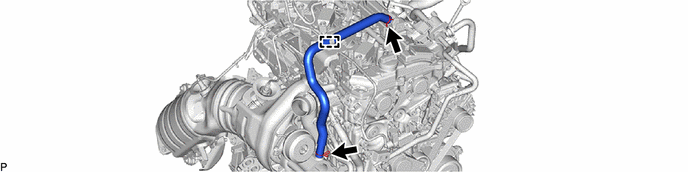

  14. REMOVE NO. 2 VENTILATION HOSE
    1. GTY1185278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

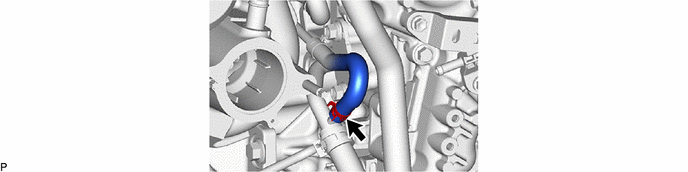

  15. DISCONNECT NO. 1 TURBO WATER HOSE
    1. GTY1185276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

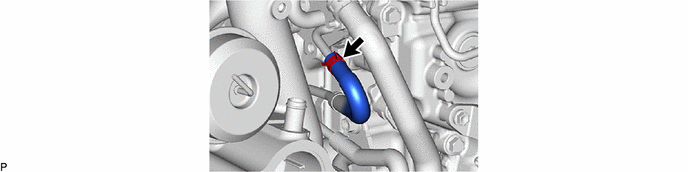

  16. DISCONNECT NO. 2 TURBO WATER HOSE
    1. GTY1185280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

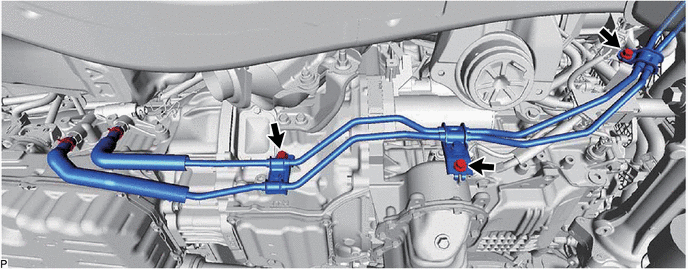

  17. DISCONNECT OIL COOLER TUBE CLAMP
    1. GTY1224208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

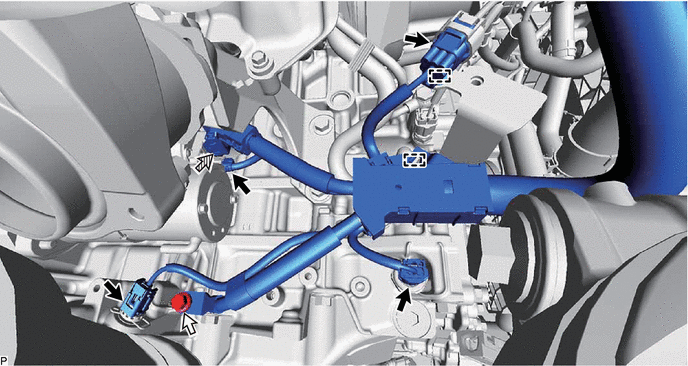

  18. DISCONNECT ENGINE WIRE
    1. GTY1223730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector Bolt
      Nut - -

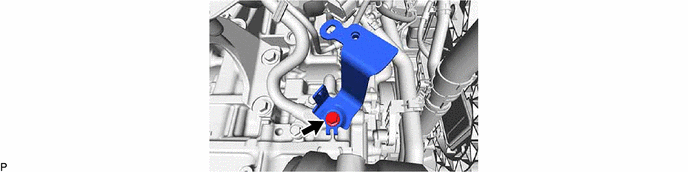

  19. REMOVE NO. 3 OIL COOLER TUBE CLAMP
    1. GTY1221602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

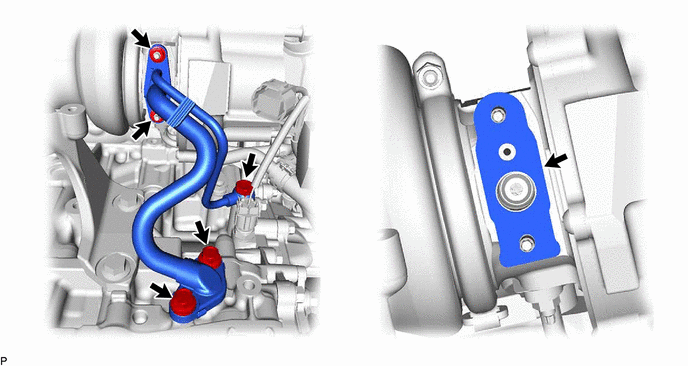

  20. REMOVE NO. 1 TURBO OIL PIPE
    1. GTY1221596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

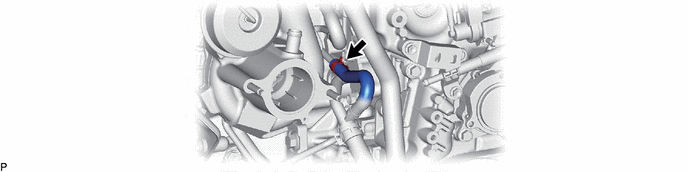

  21. REMOVE NO. 1 TURBO WATER HOSE
    1. GTY1185272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

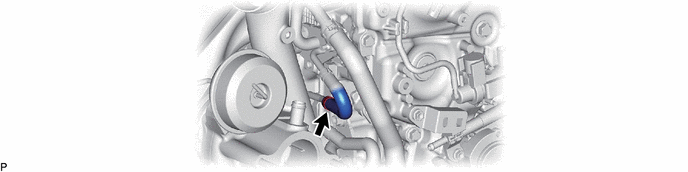

  22. REMOVE NO. 2 TURBO WATER HOSE
    1. GTY1185270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

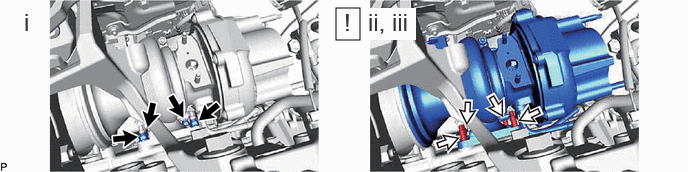

  23. REMOVE TURBOCHARGER SUB-ASSEMBLY
    NOTE:

    If a stud bolt is deformed or its threads are damaged, replace it.
    1. GTY1225868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut Stud Bolt
      1. Remove the 4 nuts.
      2. Using an E10 "TORX" socket wrench, remove the 4 stud bolts from the cylinder head.
      3. Remove the turbocharger sub-assembly.

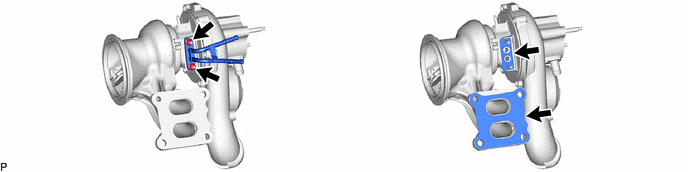

  24. REMOVE NO. 1 TURBO WATER PIPE SUB-ASSEMBLY
    1. GTY1221595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
