Removal [02/2024 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Screw

   Clip

HINT:

The illustration is an example, so the details may differ.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Screw		Clip
   	Grommet	-	-

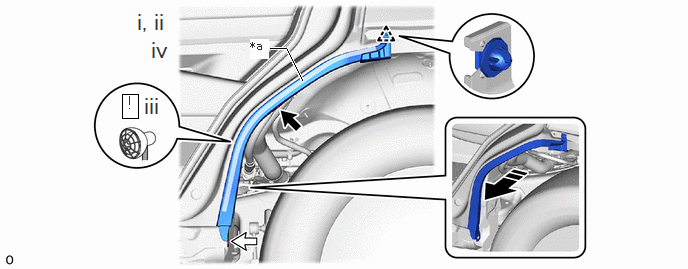

   1. Put protective tape around the quarter outside moulding sub-assembly LH.
   2. Using a 4 mm hexagon socket wrench, remove the screw.
   3. Remove the 2 clips and grommet.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   -

   -

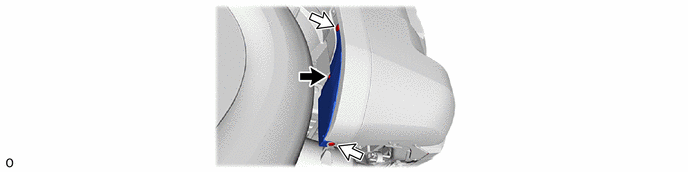

   1. Detach the clip and claw and remove the quarter outside moulding sub-assembly LH as shown in the illustration.

HINT:

The illustration is an example, so the details may differ.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

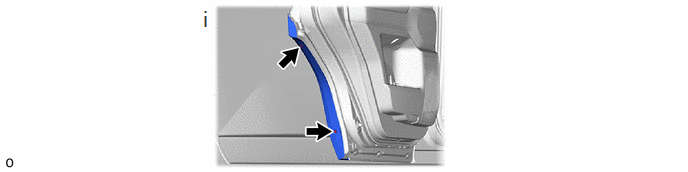

   1. Remove the 2 clips.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   -

   -

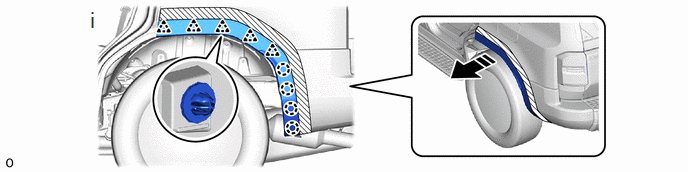

   1. Put protective tape around the outside moulding set LH.
   2. Detach the clip and remove the outside moulding set LH as shown in the illustration.

Refer to REMOVAL [02/2024 - ]

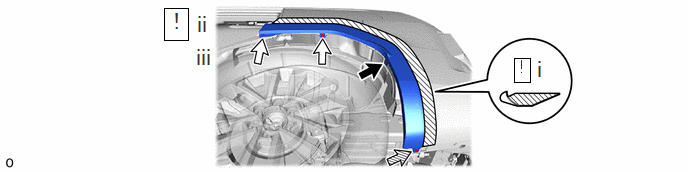

NOTE: When removing the quarter panel wheel opening moulding LH, if the double-sided tape is difficult to remove, heat the adhesive of the quarter panel wheel opening moulding LH using a heat light.

Standard Value

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Double-sided Tape	-	-
   	Remove in this Direction		Clip
   	Grommet	-	-

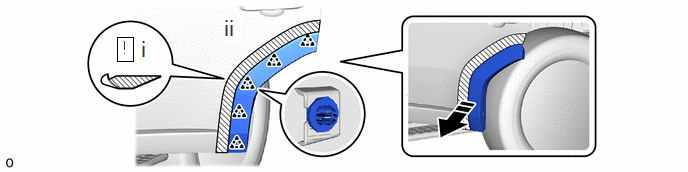

   1. Remove the clip.
   2. Remove the grommet.
   3. Heat the adhesive of the quarter panel wheel opening moulding LH using a heat light.
   4. Detach the clip and remove the quarter panel wheel opening moulding LH as shown in the illustration.
