Disassembly [02/2024 - ]: Procedure

PRECAUTION

NOTE:

When removing parts with double-sided tape applied, heat the portion of the parts with tape residue with a heat light if the double-sided tape is difficult to remove.

Standard Value

Part	Temperature
Metal parts	40 to 60°C (104 to 140°F)
Resin parts	20 to 30°C (68 to 86°F)

WARNING:

Do not touch the heat light and heated parts.
Touching the heat light may result in burns.
Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

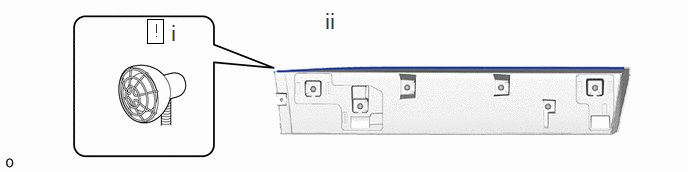

*a	Heated Part
*b	Heat Light

NOTE:

Do not heat the part excessively.

REMOVE REAR DOOR UPPER OUTSIDE MOULDING PAD

Heat the adhesive of the rear door upper outside moulding pad LH using a heat light.
Remove the rear door upper outside moulding pad LH.
