Removal [02/2024 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   -

   -

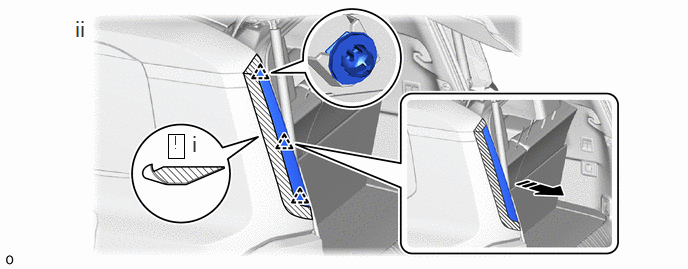

   1. Put protective tape around the lower quarter window moulding LH.
   2. Detach the clip and remove the lower quarter window moulding LH as shown in the illustration.

NOTE: When removing the upper quarter window moulding LH, if the double-sided tape is difficult to remove, heat the adhesive of the upper quarter window moulding LH using a heat light.

Standard Value

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

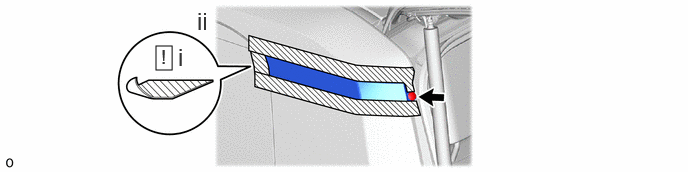

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Put protective tape around the upper quarter window moulding LH.
   2. Remove the clip.

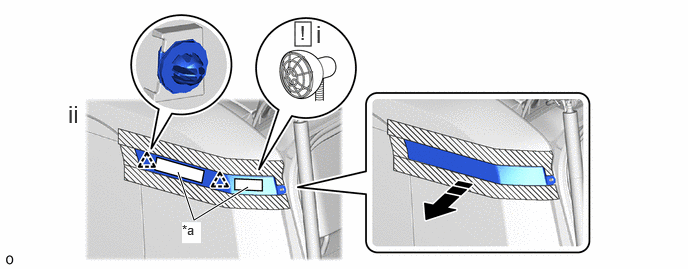

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Double-sided Tape	-	-
   	Remove in this Direction	-	-

   1. Heat the adhesive of the upper quarter window moulding LH using a heat light.
   2. Detach the clip and remove the upper quarter window moulding LH as shown in the illustration.
