Reassembly [02/2024 - ]: Procedure

  1. INSTALL FRONT FENDER SUB-ASSEMBLY LH

    Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

  2. INSTALL FRONT SIDE NO. 2 AIR GUIDE

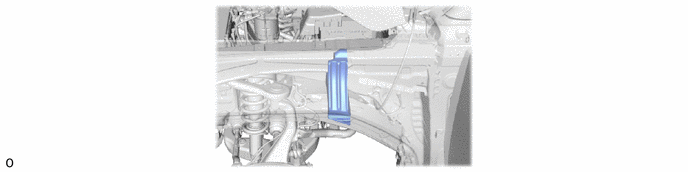

    1. GTY1222284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT FENDER SIDE PANEL PROTECTOR LH
  4. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH
  5. INSTALL BODY ROCKER PANEL MOULDING ASSEMBLY LH
  6. INSTALL FRONT FENDER TO COWL SIDE SEAL LH
  7. INSTALL FRONT FENDER NO. 2 TO COWL SIDE SEAL LH
  8. INSTALL WHEEL ASSEMBLY

    Refer to INSTALLATION [02/2024 - ]

  9. INSTALL HEADLIGHT ASSEMBLY LH
    1. for Triple Beam Headlight:

      Refer to INSTALLATION [02/2024 - ]

    2. for Single Beam Headlight

      Refer to INSTALLATION [02/2024 - ]

  10. ADJUST FRONT DOOR PANEL SUB-ASSEMBLY LH

    Refer to ADJUSTMENT [02/2024 - ]

  11. ADJUST HOOD SUB-ASSEMBLY

    Refer to ADJUSTMENT [02/2024 - ]
