Removal [02/2024 - ]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 7

  2. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 9

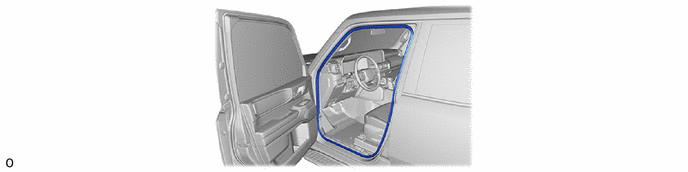

  3. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. GTY1224240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
