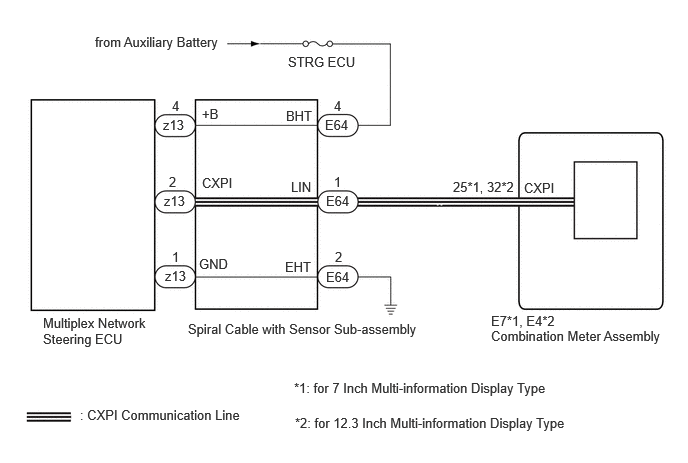

DTC B1512-87: Lost Communication with Steering Switch Control Module Missing Message [02/2024 - ]: Wiring Diagram

GTY1221106

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
