Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during combination meter assembly removal/installation are shown below.
NECESSARY PROCEDURE AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Combination meter assembly | Update ECU security key | Vehicle control history (RoB) are stored | Refer to UPDATE ECU SECURITY KEY [02/2024 - ] |
| Software update* | - | Refer to REGISTRATION [02/2024 - ] |
*: for 12.3 Inch Display

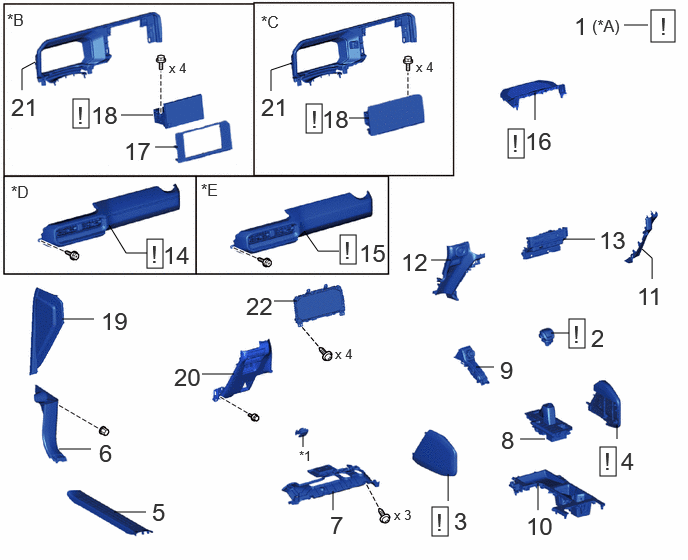

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM | - | See step 1 | - | - |
| 2 | SHIFT LEVER KNOB SUB-ASSEMBLY | 33504F | See step 2 | - | - |
| 3 | LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY | 55402E | See step 3 | - | - |
| 4 | LOWER NO. 2 INSTRUMENT PANEL PAD SUB-ASSEMBLY | 55403G | See step 4 | - | - |
| 5 | FRONT DOOR SCUFF PLATE LH | 67914B | - | - | - |
| 6 | COWL SIDE TRIM BOARD LH | 62112 | - | - | - |
| 7 | NO. 1 INSTRUMENT PANEL UNDER COVER | 55641 | See step 7 | - | - |
| 8 | UPPER CONSOLE PANEL ASSEMBLY | - | - | - | - |
| 9 | INTEGRATION CONTROL AND PANEL SUB-ASSEMBLY | 84012 | - | - | - |
| 10 | UPPER CONSOLE PANEL SUB-ASSEMBLY | 58804A | - | - | - |
| 11 | LOWER INSTRUMENT PANEL LH | 55313 | - | - | - |
| 12 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY | 55480D | - | - | - |
| 13 | CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | 55405B | - | - | - |
| 14 | NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY | 55011A | See step 14 | - | - |
| 15 | INSTRUMENT PANEL ORNAMENT | 55461A | See step 15 | - | - |
| 16 | UPPER INSTRUMENT CLUSTER FINISH PANEL | 55421B | See step 16 | - | - |
| 17 | CENTER INSTRUMENT CLUSTER FINISH PANEL | 55412D | - | - | - |
| 18 | RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET | - | See step 18 | - | - |
| 19 | INSTRUMENT SIDE PANEL LH | 55318C | - | - | - |
| 20 | LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY | 55045 | - | - | - |
| 21 | CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY | 55420A | - | - | - |
| 22 | COMBINATION METER ASSEMBLY | 83100 | - | - | - |
| *A | for Power Tilt and Power Telescopic Steering Column | *B | for 8 Inch Display |
| *C | for 12.3 Inch Display | *D | for Type A |
| *E | for Type B | - | - |
| *1 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | - | - |
