Reassembly [02/2024 - ]: Procedure

  1. INSTALL ROOF SIDE INNER GARNISH CAP RH (for RH Side, w/o Rear No. 2 Seat)
  2. INSTALL ROOF SIDE INNER GARNISH CAP LH (for LH Side, w/o Rear No. 2 Seat)
  3. INSTALL REAR NO. 2 SEAT SHOULDER BELT HANGER (w/ Rear No. 2 Seat)
  4. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
  5. INSTALL QUARTER TRIM COVER RH
  6. INSTALL NO. 3 USB CHARGER SOCKET (w/ USB Charger)
  7. INSTALL SPARE SWITCH HOLE COVER (w/o USB Charger)
  8. INSTALL POWER OUTLET SOCKET BEZEL (for RH Side)
  9. INSTALL REAR QUARTER TRIM BASE COVER RH (for RH Side, w/ Rear Air Conditioning System)
  10. INSTALL FRONT QUARTER TRIM BASE COVER RH (for RH Side, w/ Rear Air Conditioning System)
  11. INSTALL QUARTER TRIM COVER LH (for LH Side, w/o Rear No. 2 Seat)
  12. INSTALL QUARTER TRIM JACK COVER (for LH Side)
  13. INSTALL NO. 1 ROOF WIRE

    HINT:

    The illustrations are representative examples, and details may differ.

    1. for Moon Roof:

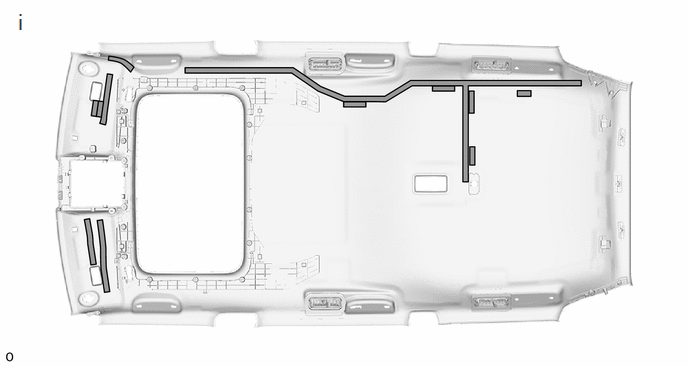

      GTY1223888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Butyl Tape - -
      1. Apply butyl tape to the roof headlining assembly ensuring it does not go over the marking.
    2. for Normal Roof:

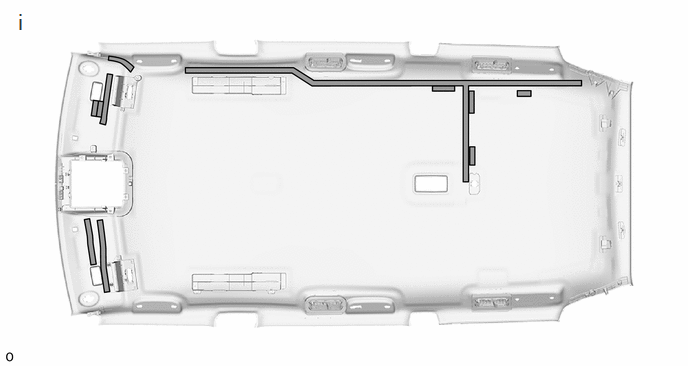

      GTY1224525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Butyl Tape - -
      1. Apply butyl tape to the roof headlining assembly ensuring it does not go over the marking.
    3. for Moon Roof:

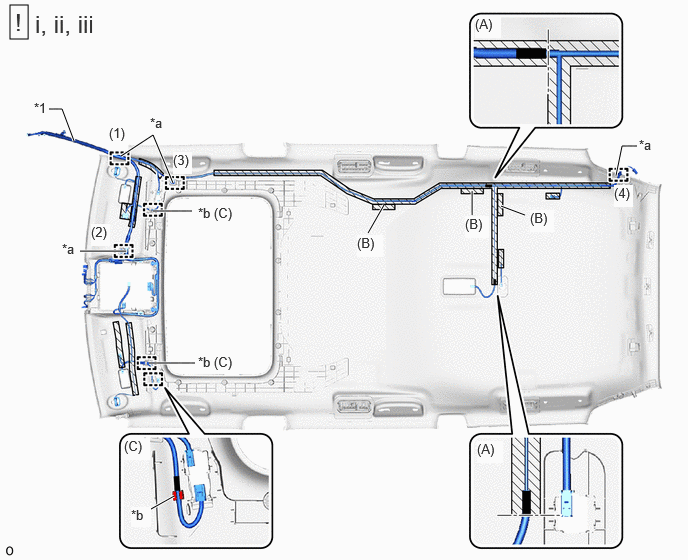

      Fig 1: No. 1 Roof Wire Tightening Sequence (For Moon Roof)
      GTY1226813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Roof Wire - -
      *a Clamp *b Hook
      Positioning Tape Butyl Tape Area
      1. Attach the clamp in the order shown in the illustration.
      2. Secure the No. 1 roof wire to the butyl tape as shown in the illustration.
        NOTE:
        • Make sure to attach the No. 1 roof wire without leaving any of it loose.
        • If any of the No. 1 roof wire is left loose, it will cause an abnormal noise.

        HINT:

        • Align the edge of the positioning tape of the No. 1 roof wire with the marking on the roof headlining assembly and secure the No. 1 roof wire to the butyl tape as shown in the part of the illustration labeled (A).
        • Adjust the extra length of the No. 1 roof wire in the part of the illustration labeled (B) and sucere the No. 1 roof wire to the butyl tape.
        • Apply the No. 1 roof wire so that it is securely attached and not twisted.
      3. Attach the hook as shown in the illustration.

        HINT:

        Align the edge of the positioning tape of the No. 1 roof wire with the edge of the hook the roof headlining assembly and attach the No. 1 roof wire to the hook as shown in the part of the illustration labeled (C).

    4. for Moon Roof:

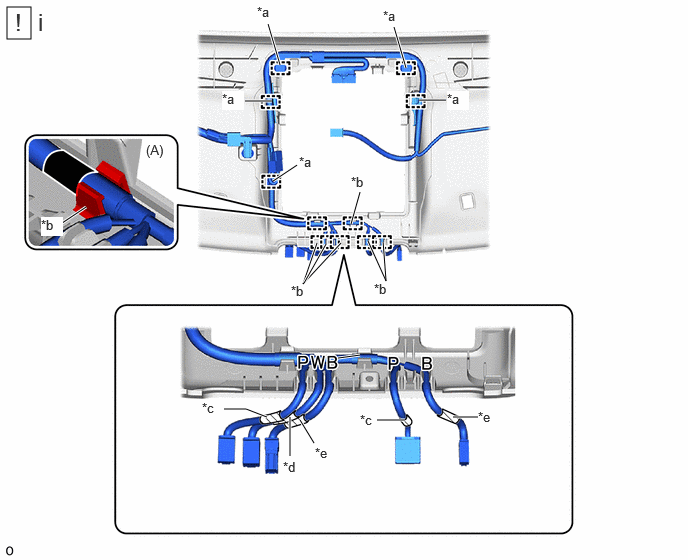

      GTY1216812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp *b Hook
      *c Pink Tape Color *d White Tape Color
      *e Sky Blue Tape Color - -
      Positioning Tape Guide Tape
      1. Attach the clamp and hook to install the No. 1 roof wire as shown in the illustration.

        HINT:

        • Align the edge of the positioning tape of the No. 1 roof wire with the edge of the hook the roof headlining assembly and attach the No. 1 roof wire to the hook as shown in the part of the illustration labeled (A).
        • Align the roof headlining marking symbol and guide tape color.
    5. for Normal Roof:

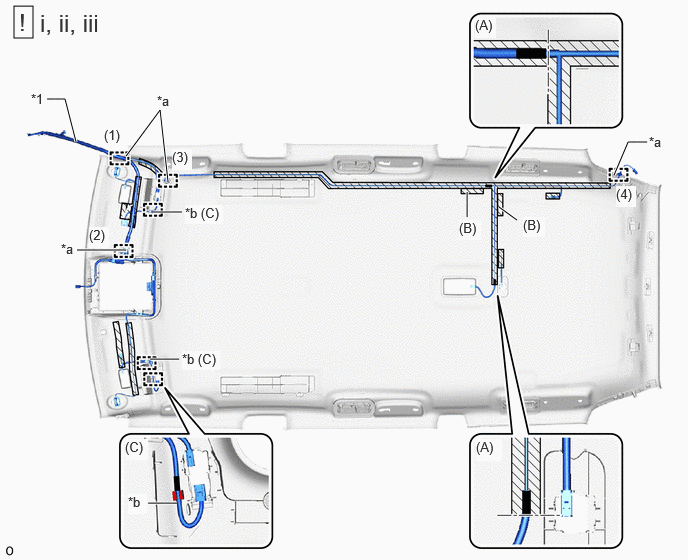

      Fig 2: No. 1 Roof Wire Tightening Sequence (For Normal Roof)
      GTY1223932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Roof Wire - -
      *a Clamp *b Hook
      Positioning Tape Butyl Tape Area
      1. Attach the clamp in the order shown in the illustration.
      2. Secure the No. 1 roof wire to the butyl tape as shown in the illustration.
        NOTE:
        • Make sure to attach the No. 1 roof wire without leaving any of it loose.
        • If any of the No. 1 roof wire is left loose, it will cause an abnormal noise.

        HINT:

        • Align the edge of the positioning tape of the No. 1 roof wire with the marking on the roof headlining assembly and secure the No. 1 roof wire to the butyl tape as shown in the part of the illustration labeled (A).
        • Adjust the extra length of the No. 1 roof wire in the part of the illustration labeled (B) and sucere the No. 1 roof wire to the butyl tape.
        • Apply the No. 1 roof wire so that it is securely attached and not twisted.
      3. Attach the hook as shown in the illustration.

        HINT:

        Align the edge of the positioning tape of the No. 1 roof wire with the edge of the hook the roof headlining assembly and attach the No. 1 roof wire to the hook as shown in the part of the illustration labeled (C).

    6. for Normal Roof:

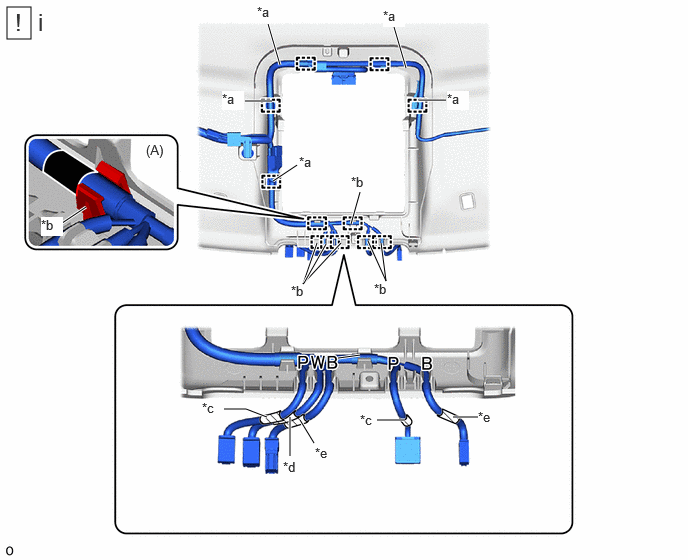

      GTY1217160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp *b Hook
      *c Pink Tape Color *d White Tape Color
      *e Sky Blue Tape Color - -
      Positioning Tape Guide Tape
      1. Attach the clamp and hook to install the No. 1 roof wire as shown in the illustration.

        HINT:

        • Align the edge of the positioning tape of the No. 1 roof wire with the edge of the hook the roof headlining assembly and attach the No. 1 roof wire to the hook as shown in the part of the illustration labeled (A).
        • Align the roof headlining marking symbol and guide tape color.

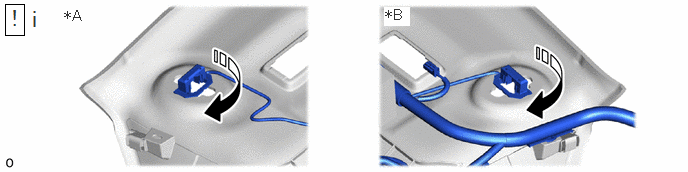

    7. GTY1056988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Driver Side *B for Front Passenger Side
      Install in this Direction - -
      1. Turn the visor connectors approximately 90° clockwise and install them to the roof headlining assembly.
  14. INSTALL WASHER HOSE
    1. for Moon Roof:

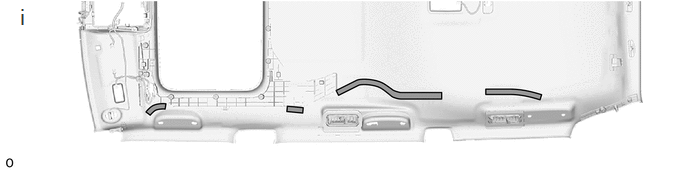

      GTY1219959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Butyl Tape - -
      1. Apply butyl tape to the roof headlining assembly ensuring it does not go over the marking.
    2. for Normal Roof:

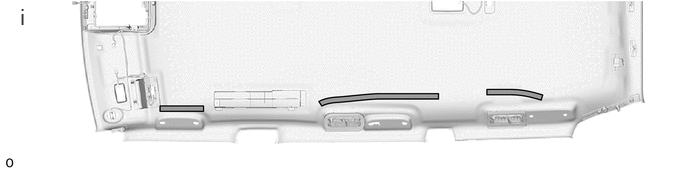

      GTY1221391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Butyl Tape - -
      1. Apply butyl tape to the roof headlining assembly ensuring it does not go over the marking.
    3. for Moon Roof:

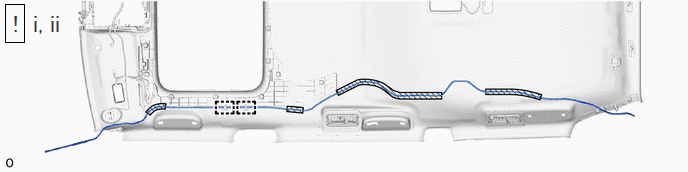

      GTY1221790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Butyl Tape Area - -
      1. Secure the washer hose to the butyl tape as shown in the illustration.
        NOTE:
        • Make sure to attach the washer hose without leaving any of it loose.
        • If any of the washer hose is left loose, it will cause an abnormal noise.
      2. Attach the clamp to install the washer hose.
    4. for Normal Roof:

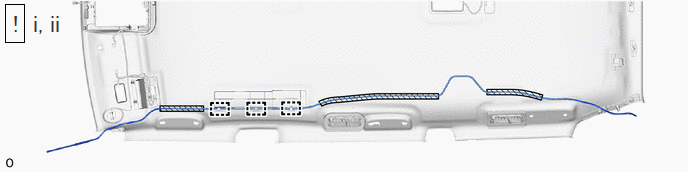

      GTY1222174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Butyl Tape Area - -
      1. Secure the washer hose to the butyl tape as shown in the illustration.
        NOTE:
        • Make sure to attach the washer hose without leaving any of it loose.
        • If any of the washer hose is left loose, it will cause an abnormal noise.
      2. Attach the clamp to install the washer hose.
  15. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY
    Refer to PROCEDURE - Step 6
  16. INSTALL ROOF HEADLINING HOLDER COVER
  17. INSTALL MICROPHONE CASE
  18. INSTALL ACTIVE NOISE CONTROL MICROPHONE
  19. INSTALL TELEPHONE MICROPHONE ASSEMBLY
  20. INSTALL NO. 4 ROOF SILENCER PAD

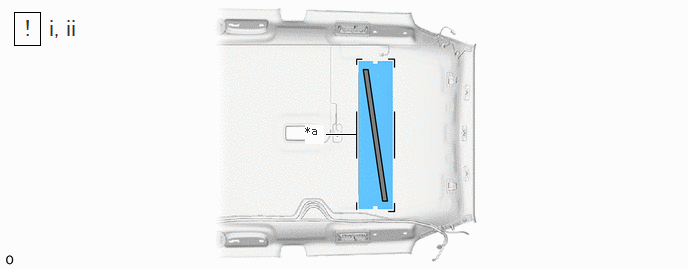

    1. GTY1223927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Marking - -
      Butyl Tape - -
      1. Apply butyl tape to the roof headlining assembly ensuring it does not go over the marking.
      2. Align the markings on the roof headlining assembly with the a new No. 4 roof silencer pad and install them as shown in the illustration.
  21. INSTALL NO. 3 ROOF SILENCER PAD

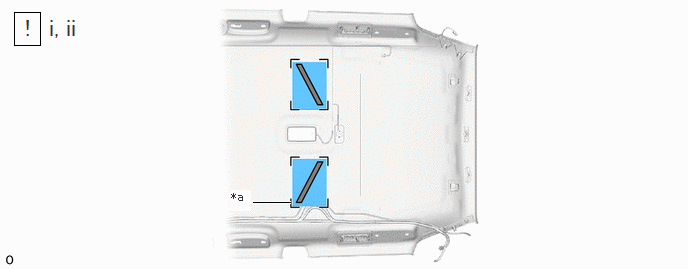

    1. GTY1224510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Marking - -
      Butyl Tape - -
      1. Apply butyl tape to the roof headlining assembly ensuring it does not go over the marking.
      2. Align the markings on the roof headlining assembly with the a new No. 3 roof silencer pad and install them as shown in the illustration.
  22. INSTALL NO. 2 ROOF SILENCER PAD (for Normal Roof)

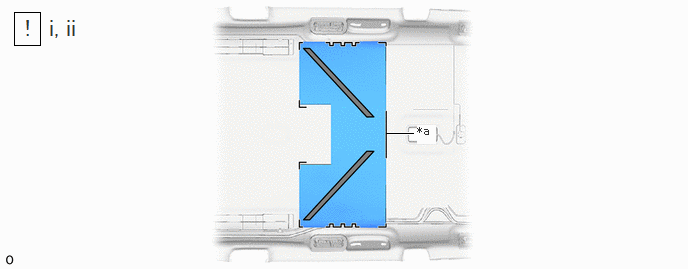

    1. GTY1225697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Marking - -
      Butyl Tape - -
      1. Apply butyl tape to the roof headlining assembly ensuring it does not go over the marking.
      2. Align the markings on the roof headlining assembly with the a new No. 2 roof silencer pad and install them as shown in the illustration.
  23. INSTALL NO. 1 ROOF SILENCER PAD (for Normal Roof)

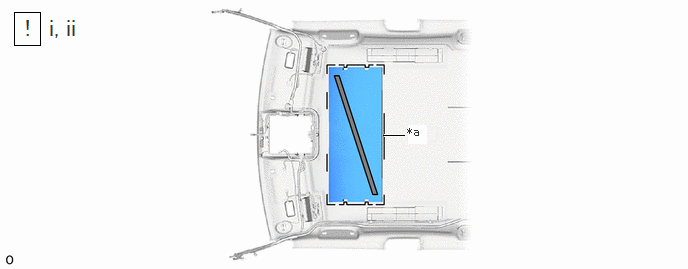

    1. GTY1225458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Marking - -
      Butyl Tape - -
      1. Apply butyl tape to the roof headlining assembly ensuring it does not go over the marking.
      2. Align the markings on the roof headlining assembly with the a new No. 1 roof silencer pad and install them as shown in the illustration.
