Removal [02/2024 - ]: Procedure

  1. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 1

  2. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    Refer to PROCEDURE - Step 2

  3. REMOVE LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY
    See step  1
  4. REMOVE LOWER NO. 2 INSTRUMENT PANEL PAD SUB-ASSEMBLY
    See step  2
  5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    Refer to PROCEDURE - Step 1
  6. REMOVE UPPER CONSOLE PANEL ASSEMBLY

    See step  4

  7. REMOVE INTEGRATION CONTROL AND PANEL SUB-ASSEMBLY

    See step  5

  8. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    See step  6

  9. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY
    See step  7
  10. REMOVE NO. 2 CONSOLE REAR END PANEL SUB-ASSEMBLY

    See step  8

  11. REMOVE COOLING BOX ASSEMBLY
    1. GTY1214538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and disconnect the discharge hose.
      2. Remove the O-ring from the discharge hose.
        NOTE:

        Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

    2. GTY1214448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and disconnect the liquid hose.
      2. Remove the O-ring from the liquid hose.
        NOTE:

        Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

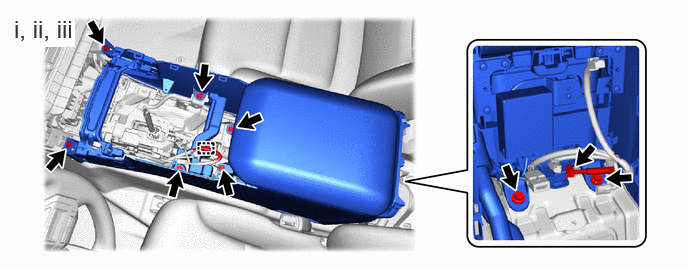

    3. GTY1225680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector.
      2. Remove the 6 bolts.
      3. Remove the 2 screws and cooling box assembly.
