Reassembly [02/2024 - ]: Procedure

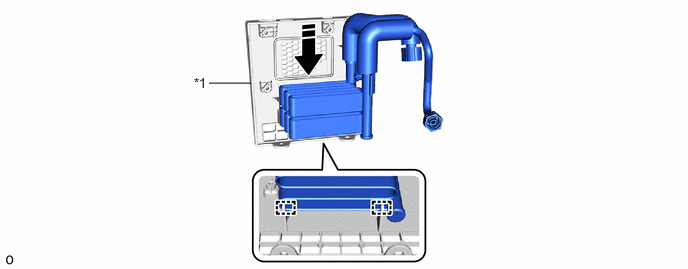

INSTALL COOLER (COOL BOX) EVAPORATOR SUB-ASSEMBLY

NOTE:

When the cooler (cool box) evaporator sub-assembly is removed, make sure to install a new one. The cooler (cool box) evaporator sub-assembly cannot be reused.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Cooling Unit Case Sub-assembly	-	-
	Install in this Direction	-	-

INSTALL COOL BOX BLOWER MOTOR WITH FAN SUB-ASSEMBLY

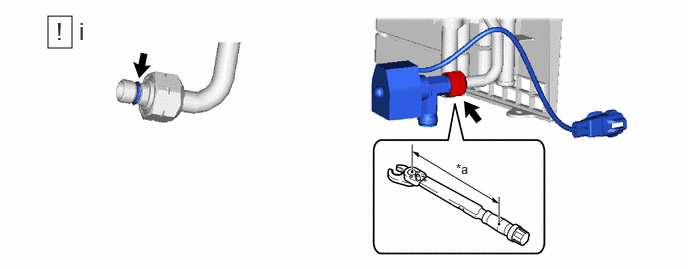

INSTALL COOLER MAGNET VALVE ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque Wrench Fulcrum Length

Install the cooler magnet valve assembly using the following procedure.
1. Remove the vinyl tape from the cooler magnet valve assembly and then apply a sufficient amount of compressor oil to the fitting surface with the cooler (cool box) evaporator sub-assembly.

Compressor Oil

ND-OIL 11 or equivalent

2. Using a union nut wrench 19 mm, tighten the union nut and install the cooler magnet valve assembly.

NOTE:
Make sure not to cut the O-ring while installing it. (Cut O-rings cannot be installed.)

HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
  Refer to PRECAUTION [02/2024 - ]
- When using a union nut wrench (fulcrum length of 30 mm (1.181 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):
  12.2 N*m (124 kgf*cm, 9 ft.*lbf)

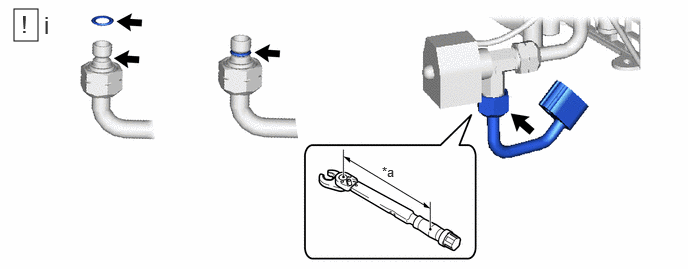

INSTALL LIQUID TUBE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque Wrench Fulcrum Length

Install the liquid tube using the following procedure.
1. Remove the vinyl tape from the liquid tube and then apply a sufficient amount of compressor oil to a new O-ring and the fitting surface with the cooler magnet valve assembly.

Compressor Oil

ND-OIL 11 or equivalent

2. Install the O-ring to the liquid tube.

NOTE:
Keep the O-rings and O-ring fitting surfaces free of foreign matter.

3. Using a union nut wrench 19 mm, tighten the union nut and install the liquid tube.

NOTE:
Make sure not to cut the O-ring while installing it. (Cut O-rings cannot be installed.)

HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
  Refer to PRECAUTION [02/2024 - ]
- When using a union nut wrench (fulcrum length of 30 mm (1.181 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):
  12.2 N*m (124 kgf*cm, 9 ft.*lbf)

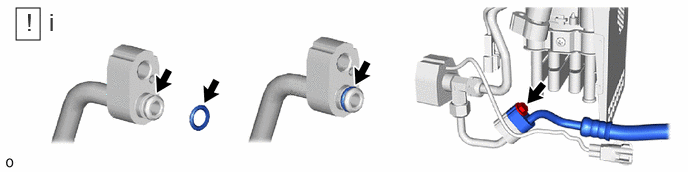

INSTALL LIQUID HOSE

Install the liquid hose using the following procedure.
1. Remove the vinyl tape from the liquid hose and then apply a sufficient amount of compressor oil to a new O-ring and the fitting surface of the liquid hose and liquid pipe A.

Compressor Oil

ND-OIL 11 or equivalent

2. Install the O-ring to the liquid hose.

NOTE:
Keep the O-rings and O-ring fitting surfaces free of foreign matter.

3. Install the liquid hose with the bolt.

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

NOTE:
Make sure not to cut the O-ring while installing it. (Cut O-rings cannot be installed.)

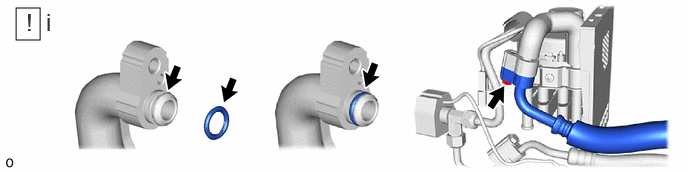

INSTALL DISCHARGE HOSE

Install the discharge hose using the following procedure.
1. Remove the vinyl tape from the discharge hose and then apply a sufficient amount of compressor oil to a new O-ring and the fitting surface of the discharge hose and cooler (cool box) evaporator sub-assembly.

Compressor Oil

ND-OIL 11 or equivalent

2. Install the O-ring to the discharge hose.

NOTE:
Keep the O-rings and O-ring fitting surfaces free of foreign matter.

3. Install the discharge hose with the bolt.

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

NOTE:
Make sure not to cut the O-ring while installing it. (Cut O-rings cannot be installed.)

INSTALL NO. 2 COOLING BOX ASSEMBLY
CONNECT AIR CONDITIONER HARNESS
INSTALL LOWER CONSOLE BOX
INSTALL BLOWER CONTROL SWITCH ASSEMBLY
INSTALL CONSOLE RETAINER
INSTALL AIR PURIFIER AMPLIFIER ASSEMBLY
INSTALL REAR CONSOLE ARMREST ASSEMBLY
INSTALL REAR CONSOLE BOX COVER
INSTALL NO. 1 BOX SIDE PANEL
INSTALL NO. 2 BOX SIDE PANEL
INSTALL NO. 2 CONSOLE BOX RETAINER
INSTALL CONSOLE BOX RETAINER
