Disassembly [02/2024 - ]: Procedure

  1. REMOVE CONSOLE BOX RETAINER

    See step  1

  2. REMOVE NO. 2 CONSOLE BOX RETAINER

    See step  2

  3. REMOVE NO. 2 BOX SIDE PANEL

    See step  3

  4. REMOVE NO. 1 BOX SIDE PANEL

    See step  4

  5. REMOVE REAR CONSOLE BOX COVER

    See step  5

  6. REMOVE REAR CONSOLE ARMREST ASSEMBLY

    See step  6

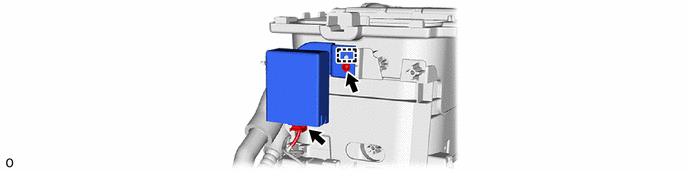

  7. REMOVE AIR PURIFIER AMPLIFIER ASSEMBLY
    1. GTY1226516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

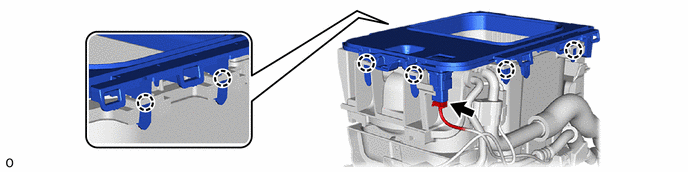

  8. REMOVE CONSOLE RETAINER
    NOTE:

    Do not apply excessive force to the console retainer as the claws may be damaged.
    1. GTY1226513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

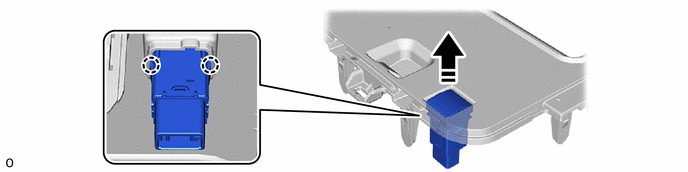

  9. REMOVE BLOWER CONTROL SWITCH ASSEMBLY
    1. GTY1224425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

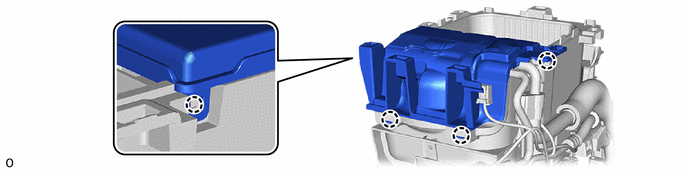

  10. REMOVE LOWER CONSOLE BOX
    1. GTY1222581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

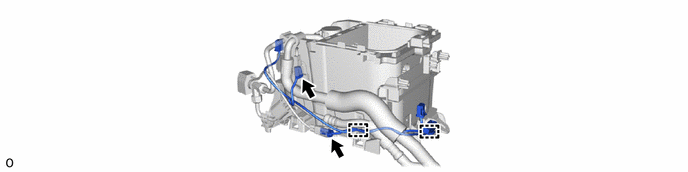

  11. DISCONNECT AIR CONDITIONER HARNESS
    1. GTY1222582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

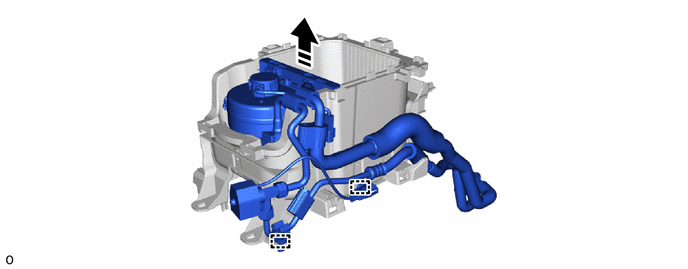

  12. REMOVE NO. 2 COOLING BOX ASSEMBLY
    1. GTY1222727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

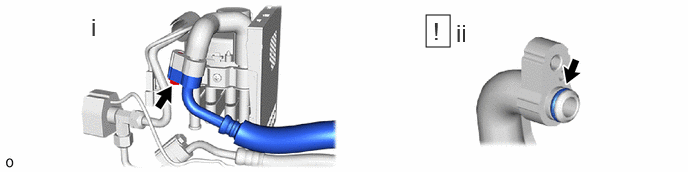

  13. REMOVE DISCHARGE HOSE
    1. GTY1215078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and discharge hose.
      2. Remove the O-ring from the discharge hose.
        NOTE:

        Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

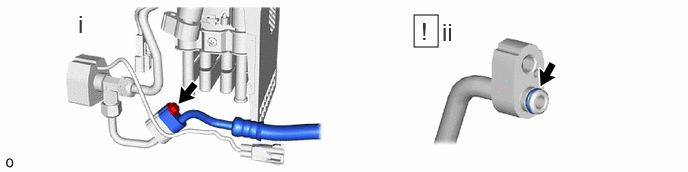

  14. REMOVE LIQUID HOSE
    1. GTY1211097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and liquid hose.
      2. Remove the O-ring from the liquid hose.
        NOTE:

        Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

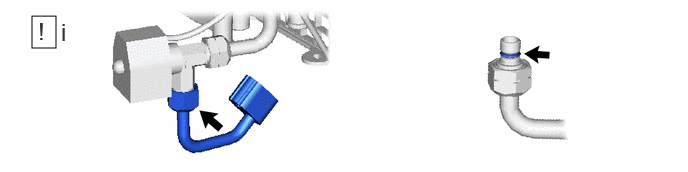

  15. REMOVE LIQUID TUBE
    1. GTY1216778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the liquid tube using the following procedure.

        1. Using a union nut wrench, loosen the nut and remove the liquid tube.

        2. Remove the O-ring from the liquid tube.

        NOTE:

        Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

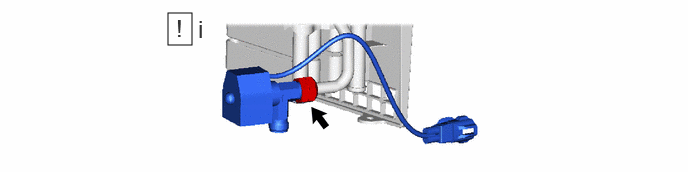

  16. REMOVE COOLER MAGNET VALVE ASSEMBLY
    1. GTY1213225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a union nut wrench, loosen the nut and remove the cooler magnet valve assembly.
        NOTE:

        Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

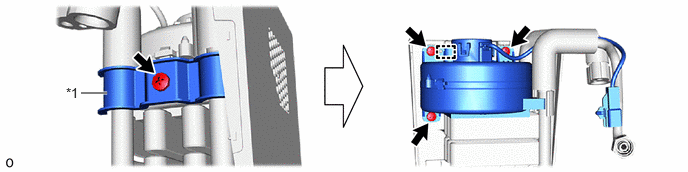

  17. REMOVE COOL BOX BLOWER MOTOR WITH FAN SUB-ASSEMBLY
    1. GTY1215471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Bracket - -

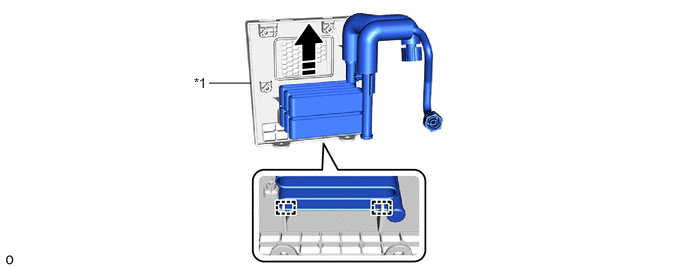

  18. REMOVE COOLER (COOL BOX) EVAPORATOR SUB-ASSEMBLY
    NOTE:

    When the cooler (cool box) evaporator sub-assembly is removed, make sure to install a new one. The cooler (cool box) evaporator sub-assembly cannot be reused.
    1. GTY1213568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Cooling Unit Case Sub-assembly - -
      Remove in this Direction - -
