System Diagram [12/2021 - ]

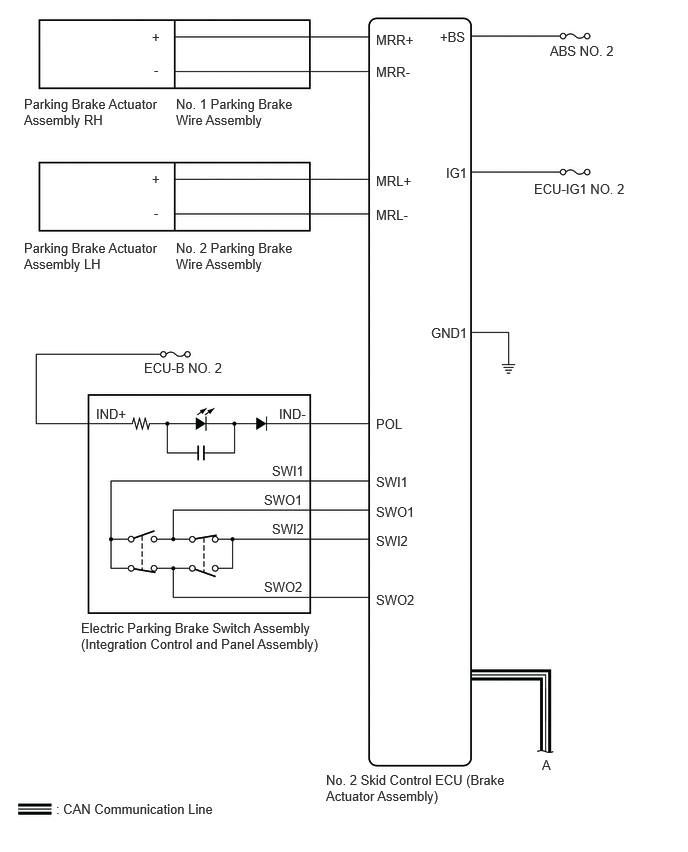

Fig 1: Electric Parking Brake System Diagram (W/O Vacuum Brake Booster) (1 Of 2)
GTY1114013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

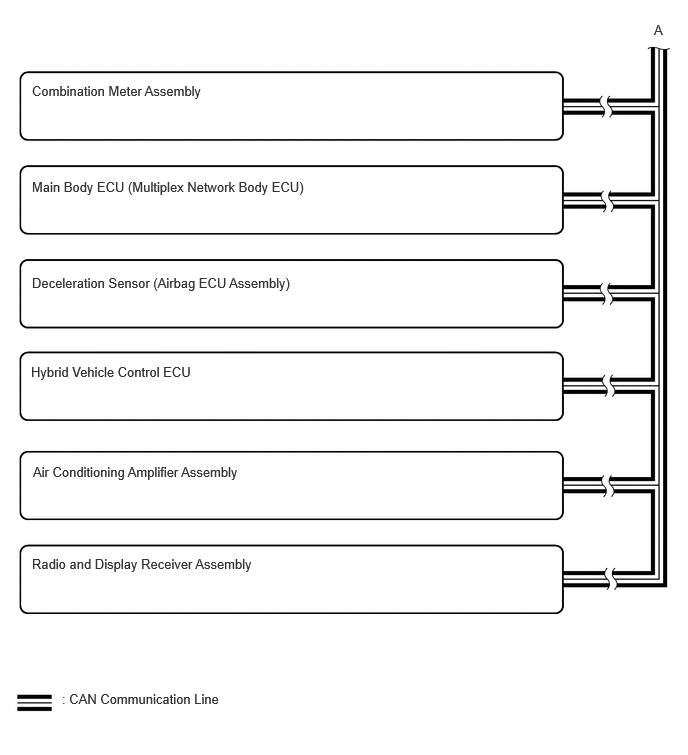

Fig 2: Electric Parking Brake System Diagram (W/O Vacuum Brake Booster) (2 Of 2)
GTY1112853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
