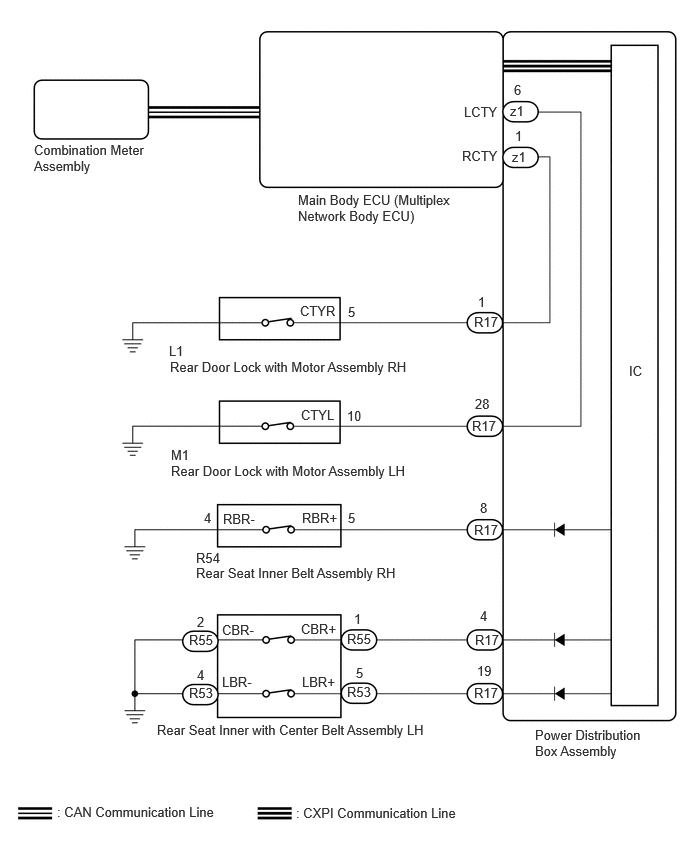

Rear Seat Belt Warning Light Malfunction [12/2022 - ]: Wiring Diagram

GTY1146880

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
