Parts Location [12/2022 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

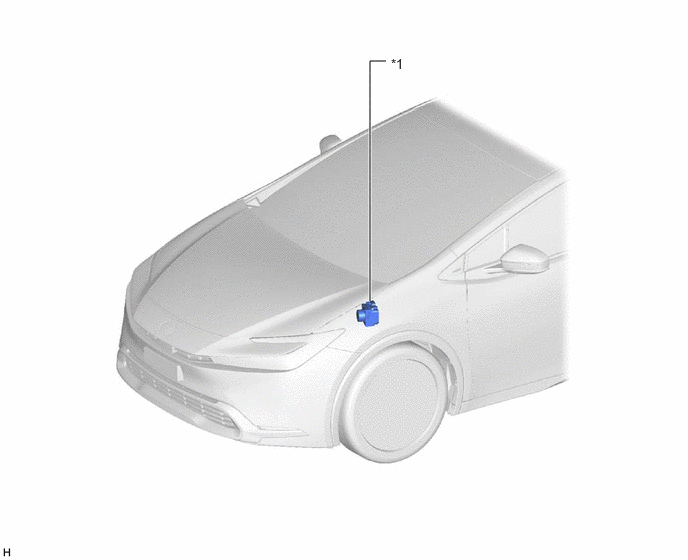

*1

NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

-

-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

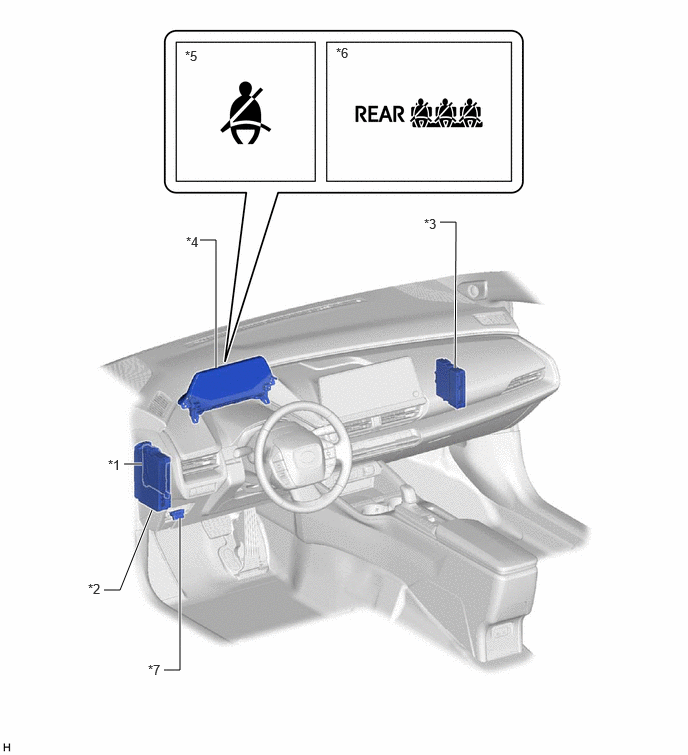

*1	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*2	POWER DISTRIBUTION BOX ASSEMBLY
*3	HYBRID VEHICLE CONTROL ECU	*4	COMBINATION METER ASSEMBLY - SEAT BELT WARNING BUZZER
*5	FRONT SEAT BELT WARNING LIGHT	*6	REAR SEAT BELT WARNING LIGHT
*7	DLC3	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

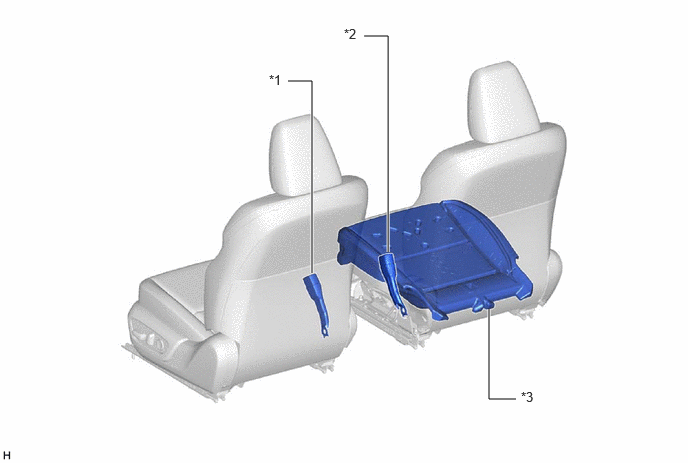

*1	FRONT SEAT INNER BELT ASSEMBLY LH	*2	FRONT SEAT INNER BELT ASSEMBLY RH
*3	OCCUPANT DETECTION SENSOR (SEPARATE TYPE FRONT SEAT CUSHION PAD RH)	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

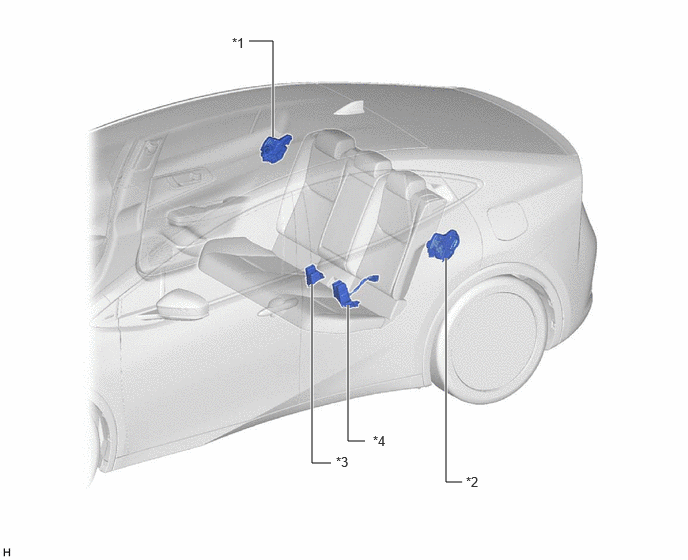

*1	REAR DOOR LOCK WITH MOTOR ASSEMBLY RH - DOOR COURTESY SWITCH	*2	REAR DOOR LOCK WITH MOTOR ASSEMBLY LH - DOOR COURTESY SWITCH
*3	REAR SEAT INNER BELT ASSEMBLY RH	*4	REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH
