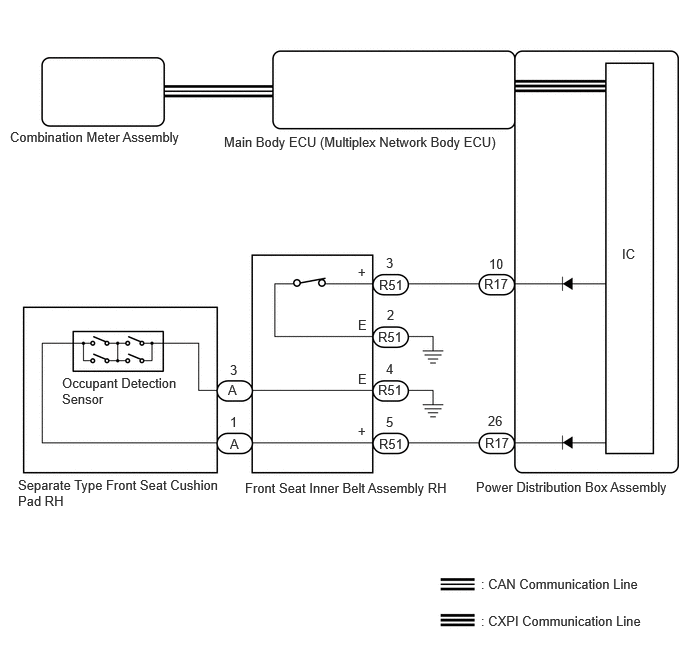

Front Passenger Side Seat Belt Warning Light does not Operate [12/2022 - ]: Wiring Diagram

GTY1144230

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
