Installation [12/2022 - ]: Procedure

NOTE: When replacing worn rear disc brake pads, the rear disc brake anti-squeal shims and rear disc brake pad wear indicator plates must be replaced together with the rear disc brake pads. Install each rear disc brake pad wear indicator plate in the correct position and direction. Install the rear disc brake anti-squeal shims in the correct positions and directions.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

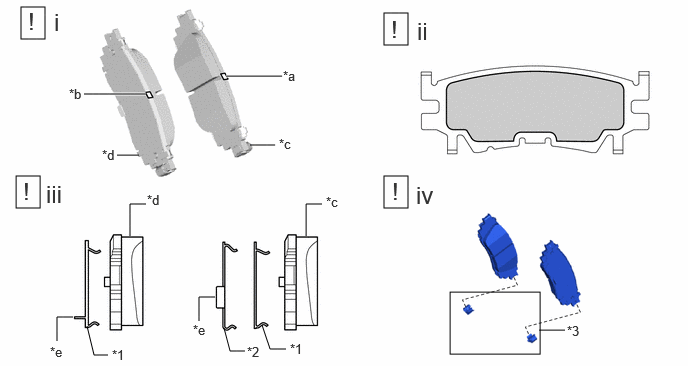

   *1	Rear No. 1 Disc Brake Anti-squeal Shim	*2	Rear No. 2 Disc Brake Anti-squeal Shim
   *3	Rear Disc Brake Pad Wear Indicator Plate	-	-
   *a	Identification Mark (Orange)	*b	Identification Mark (Yellow green)
   *c	Inner Side	*d	Outer Side
   *e	Crow	-	-
   	Brake Shim Grease (Part No. 08887-80409)	-	-

   1. Check the rear disc brake pad.

      HINT:

      Use the illustration to identify the inner side rear disc brake pad and outer side rear disc brake pad so that they can be installed to the correct side of the caliper.

   2. Apply brake shim grease (Part No. 08887-80409) to the inner side of the rear disc brake anti-squeal shim outer side as shown in the illustration.
   3. Install the rear No. 1 disc brake anti-squeal shim and rear No. 2 disc brake anti-squeal shim to each rear disc brake pad.
   4. Install a new rear disc brake pad wear indicator plate to each rear disc brake pad.

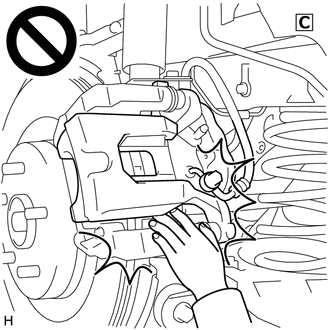

WARNING: Be careful not to get pinched by the rear disc brake cylinder assembly or other parts when installing the rear disc brake pads. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

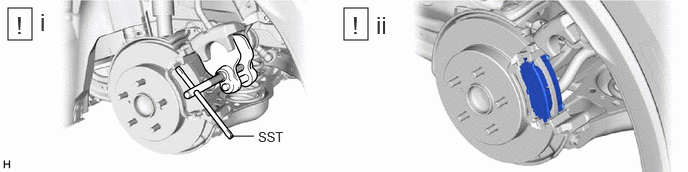

   1. Using SST, push in the rear disc brake piston.
      NOTE:

      • Make sure the brake fluid does not overflow from the reservoir.
      • Do not forcibly push in the rear disc brake piston.
      • SST: 09719-77020
   2. Install the 2 rear disc brake pads to the rear disc brake cylinder mounting.
      NOTE:

      • Keep the friction surfaces of the rear disc brake pads and rear disc free from oil and grease.
      • Install the rear disc brake pad so that the rear disc brake pad wear indicator plate is mounted on the lower side of the vehicle.
   3. Depress the brake pedal several times.

Torque: 34.3 N*m (350 kgf*cm, 25 ft.*lbf)

Refer to ON-VEHICLE INSPECTION [12/2022 - ]

Refer to INSTALLATION [12/2022 - ]

Refer to REAR BRAKE PAD REPLACEMENT MODE [12/2022 - ]

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [12/2022 - 03/2023] , or refer to AUTOMATIC LEARNING CHART [03/2023 - ]
