Removal [02/2024 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [02/2024 - ]
  2. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
    See step  2
  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [02/2024 - ]

  4. REMOVE LOWER STEERING COLUMN COVER SUB-ASSEMBLY

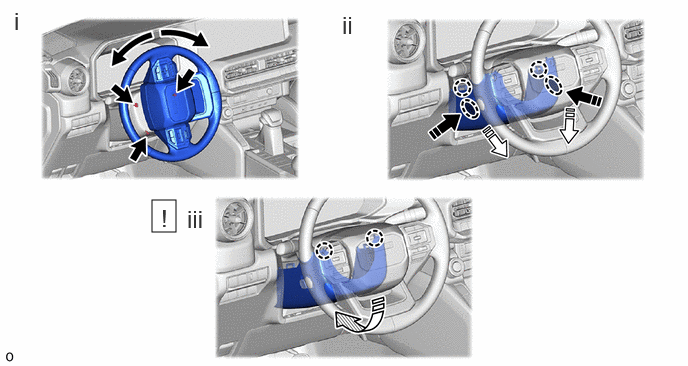

    1. GTY1225009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push Area Remove in this Direction (1)
      Remove in this Direction (2) Remove in this Direction (3)
      1. Turn the steering wheel and remove the 3 screws.
      2. Press the part in the direction of the arrow shown in the illustration to detach the claw.
      3. Detach the 2 claws and remove the lower steering column cover sub-assemblyin the direction of the arrow shown in the illustration.
        NOTE:

        Do not damage the tilt and telescopic switch.

  5. REMOVE TILT AND TELESCOPIC SWITCH

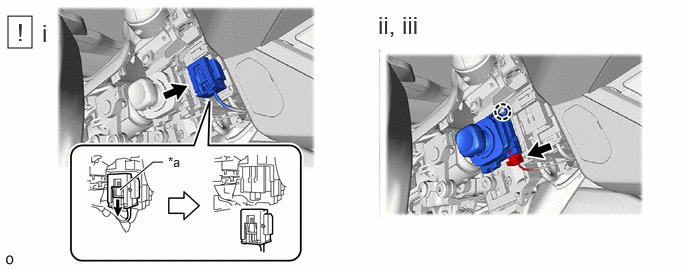

    1. GTY1221200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Slider - -
      1. Slide the slider to release the lock, and then disconnect the yellow airbag connector from the spiral cable with sensor sub-assembly.

        HINT:

        Refer to How to Connect or Disconnect Airbag Connector:

        Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [02/2024 - ]

      2. Disconnect the tilt and telescopic connector from the tilt and telescopic switch.
      3. Disengage the claw and pull out the tilt and telescopic switch.
