VSC OFF Switch Circuit [02/2024 - ]: Wiring Diagram

for 7 Inch Multi-information Display Type

GTY1223818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

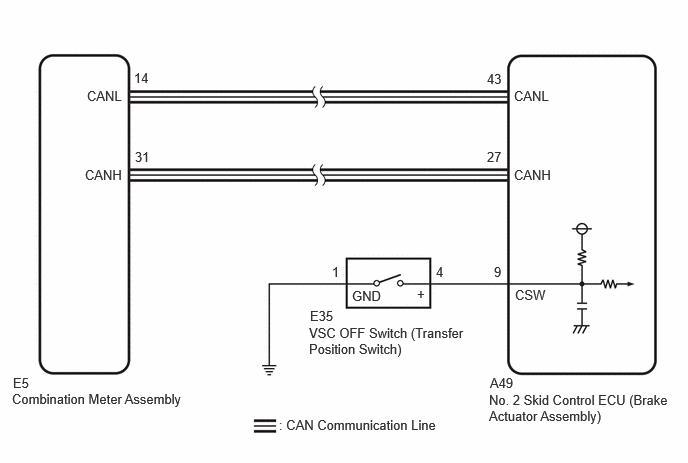

for 12.3 Inch Multi-information Display Type

GTY1223816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
