Steering Angle Sensor Wrong Installation (X0455) [02/2024 - ]: Procedure

  1. CHECK DTC (HEALTH CHECK)
    1. Perform the Health Check using the GTS.

      Result

      Result Proceed to
      DTCs are not output. A
      DTCs are output. B

    Result:

    B

    GO TO DIAGNOSTIC TROUBLE CODE CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [02/2024 - ]

    Result:

    A

    See step  2

  2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

    Result

    Proceed to
    NEXT

    Result:

    NEXT

    See step  3

  3. READ VALUE USING GTS (STEERING ANGLE SIGNAL INFORMATION)
    1. Check Data List item "steering angle signal information".

      Chassis > Steering Angle Sensor > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Steering Angle Signal Information Steering angle value (Rotation to the left side is positive) Min.: -3072.0 deg
      Max.: 3070.5 deg      		 Turning left: 0.0 to 3070.5 deg
      Turning right: -3072.0 to 0.0 deg      		 During steering operation: Changes in proportion with steering wheel rotation

      Chassis > Steering Angle Sensor > Data List

      Tester Display
      Steering Angle Signal Information
    2. Save the steering angle signal information to the GTS memory.
      NOTE:
      • If the value is +/- 360 deg (+/-15 deg), the steering sensor was incorrectly installed by 1 rotation.
      • If the value is +/- 720 deg (+/-15 deg), the steering sensor was incorrectly installed by 2 rotations.
      • In situations other than the above, the steering sensor may have been incorrectly installed by 3 or more rotations.

        In this case, it is possible that the proper installation or removal procedures were not followed, and the steering sensor may have been damaged.

      Result

      Result Proceed to
      0 deg (+/-15 deg) A
      +/-360 deg (+/-15 deg) or +/-720 deg (+/-15 deg) B
      Other than above. C

    Result:

    B

    See step  7

    Result:

    C

    REPLACE STEERING SENSOR. Refer to  REMOVAL [02/2024 - ]

    Result:

    A

    See step  4

  4. CLEAR VEHICLE CONTROL HISTORY (RoB)
    1. Using the GTS, clear the Vehicle Control History (RoB).

      Chassis > Brake/EPB > Utility

      Tester Display
      Vehicle Control History (RoB)

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  5

  5. PERFORM ZERO POINT CALIBRATION OF STEERING SENSOR
    1. Disconnect cable from negative (-) auxiliary battery terminal.
    2. Connect cable to negative (-) auxiliary battery terminal.
    3. Drive the vehicle straight ahead at 35 km/h (22 mph) or more for at least 5 seconds.

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  6

  6. CHECK VEHICLE CONTROL HISTORY (RoB)
    1. Based on the Freeze Frame Data and interview with the customer, attempt to reproduce the conditions when the malfunction occurred.
    2. Using the GTS, check for Vehicle Control History (RoB).

      Chassis > Brake/EPB > Utility

      Tester Display
      Vehicle Control History (RoB)

      Result

      Result Proceed to
      X0455 is not output. A
      X0455 is output. B

    Result:

    A

    END

    Result:

    B

    REPLACE STEERING SENSOR. Refer to  REMOVAL [02/2024 - ]

  7. ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
    1. Remove the spiral cable with sensor sub-assembly.

      Refer to REMOVAL [02/2024 - ]

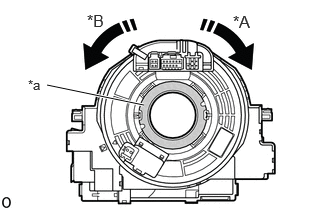

      GTY974744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Clockwise
      *B Counterclockwise
      *a Interlock
      NOTE:
      • Do not disconnect the steering sensor from the spiral cable.
      • Make sure that the cable is disconnected from the negative (-) auxiliary battery terminal.
    2. Based on the steering angle signal information that was saved to the GTS memory earlier, rotate the spiral cable with sensor sub-assembly.
      NOTE:
      • Rotate the steering sensor without disconnecting it from the spiral cable.
      • Make sure to follow the adjustment method shown in the table.
      • Failure to observe the following precautions may result in damage to the spiral cable with sensor sub-assembly.
        • When rotating the spiral cable with sensor sub-assembly, make sure to push on the interlock to release the interlock.
        • Do not turn the spiral cable with sensor sub-assembly using the airbag wire harness.
        • Do not forcibly rotate the part.
        • Make sure to perform the correct number of rotations in the correct direction.
      Steering Angle Signal Information Correction Method
      360 deg (+/-15 deg) Rotate clockwise (to the right), 1 rotation.
      -360 deg (+/-15 deg) Rotate counterclockwise (to the left), 1 rotation.
      720 deg (+/-15 deg) Rotate clockwise (to the right), 2 rotations.
      -720 deg (+/-15 deg) Rotate counterclockwise (to the left), 2 rotations.
    3. Install the spiral cable with sensor sub-assembly.

      Refer to INSTALLATION [02/2024 - ]

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  8

  8. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

    Result

    Proceed to
    NEXT

    Result:

    NEXT

    See step  9

  9. READ VALUE USING GTS (STEERING ANGLE SIGNAL INFORMATION)
    1. Check Data List item "steering angle signal information".

      Chassis > Steering Angle Sensor > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Steering Angle Signal Information Steering angle value (Rotation to the left side is positive) Min.: -3072.0 deg
      Max.: 3070.5 deg      		 Turning left: 0.0 to 3070.5 deg
      Turning right: -3072.0 to 0.0 deg      		 During steering operation: Changes in proportion with steering wheel rotation

      Chassis > Steering Angle Sensor > Data List

      Tester Display
      Steering Angle Signal Information

      Result

      Result Proceed to
      0 deg (+/-15 deg) A
      Other than above. B

    Result:

    B

    REPLACE STEERING SENSOR. Refer to  REMOVAL [02/2024 - ]

    Result:

    A

    See step  10

  10. CLEAR VEHICLE CONTROL HISTORY (RoB)
    1. Using the GTS, clear the Vehicle Control History (RoB).

      Chassis > Brake/EPB > Utility

      Tester Display
      Vehicle Control History (RoB)

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  11

  11. PERFORM ZERO POINT CALIBRATION OF STEERING SENSOR
    1. Drive the vehicle straight ahead at 35 km/h (22 mph) or more for at least 5 seconds.

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  12

  12. CHECK VEHICLE CONTROL HISTORY (RoB)
    1. Based on the Freeze Frame Data and interview with the customer, attempt to reproduce the conditions when the malfunction occurred.
    2. Using the GTS, check for Vehicle Control History (RoB).

      Chassis > Brake/EPB > Utility

      Tester Display
      Vehicle Control History (RoB)

      Result

      Result Proceed to
      X0455 is not output. A
      X0455 is output. B

    Result:

    A

    END

    Result:

    B

    REPLACE STEERING SENSOR. Refer to  REMOVAL [02/2024 - ]
