Brake Hold Standby Indicator Light Circuit [02/2024 - ]: Wiring Diagram

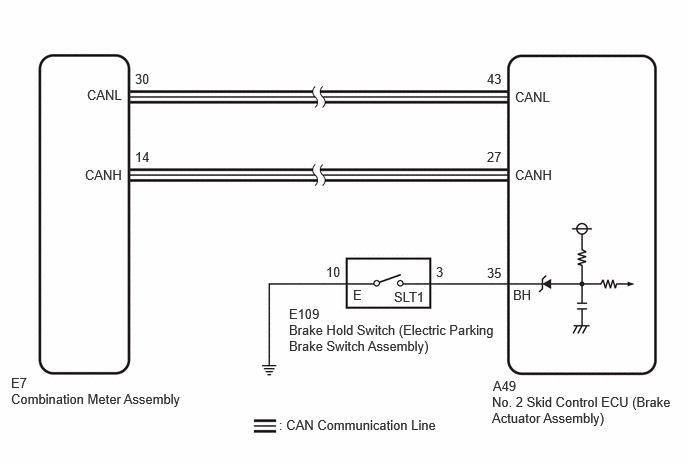

for 7 Inch Multi-information Display Type

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

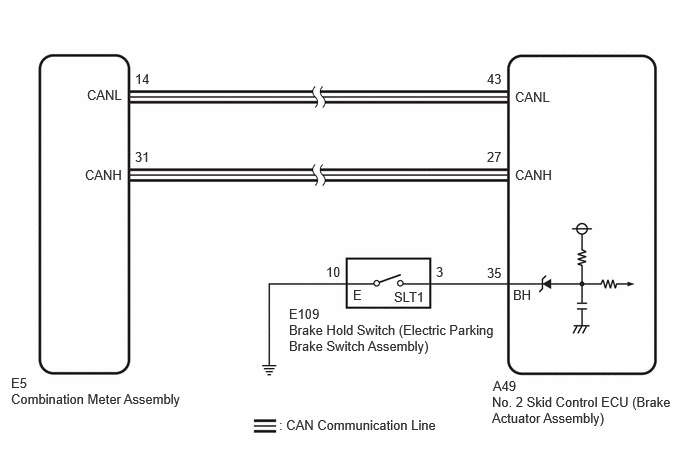

for 12.3 Inch Multi-information Display Type

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
