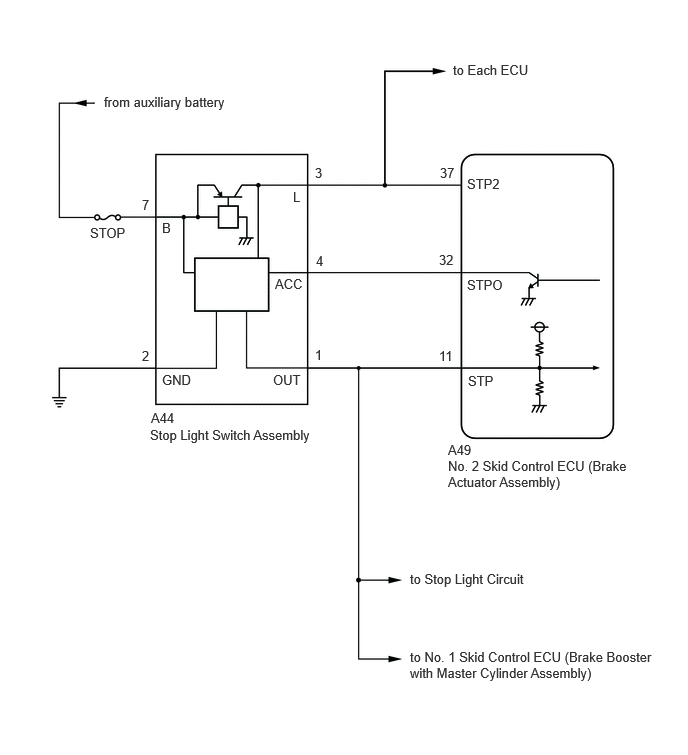

DTC C1380-7E: Stop Lamp Relay Actuator Stuck On [02/2024 - ]: Wiring Diagram

GTY1227037

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
