Installation [02/2024 - ]: Procedure

NOTE: When installing the No. 1 moulding tape, heat the No. 1 moulding tape using a heat light.

Standard Value

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Double-sided Tape

   -

   -

   1. Clean the surface of the back door outside lower garnish sub-assembly LH.

      1. Using a heat light, heat the back door outside lower garnish sub-assembly LH surface.

      2. Remove any remaining double-sided tape from the back door outside lower garnish sub-assembly LH.

      3. Wipe off any tape adhesive residue with cleaner.

      NOTE:

      • Installing the back door outside lower garnish sub-assembly LH with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
      • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Mark-off Line

   -

   -

   1. Using a brush, apply primer to the installation area of the No. 1 moulding tape.
      NOTE:

      Do not apply too much glass primer.

   2. Remove the peeling paper of the double-sided tape from the attachment surface of the No. 1 moulding tape that will be applied to the back door outside lower garnish sub-assembly LH while making sure not to touch the adhesional surface.
   3. Install the No. 1 moulding tape to the back door outside lower garnish sub-assembly LH along the mark-off line shown in the illustration.
      NOTE:

      • After the glass primer dries (in approximately 3 minutes), install the No. 1 moulding tape.
      • Install the No. 1 moulding tape so that it does not overlap with the mark-off line.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Double-sided Tape

   -

   -

   1. Clean the surface of the back door panel.

      1. Using a heat light, heat the back door panel surface.

      2. Remove any remaining double-sided tape from the back door panel.

      3. Wipe off any tape adhesive residue with cleaner.

      NOTE:

      • Installing the back door panel with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
      • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      • Clean a new back door panel surface.

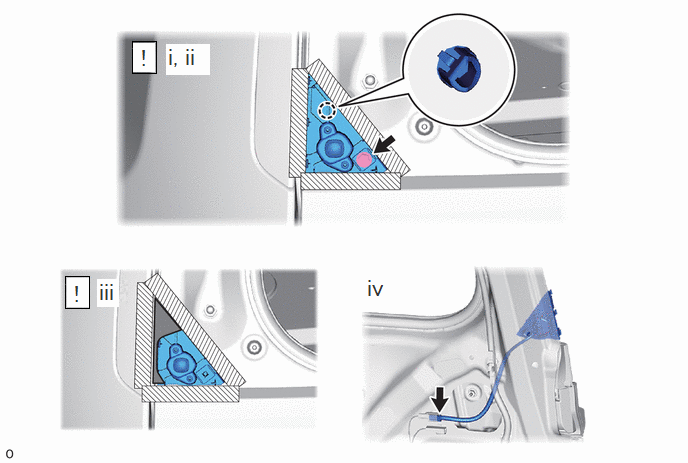

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Double-sided Tape

   -

   -

   1. Remove the peeling paper of the double-sided tape from the attachment surface of the No. 1 moulding tape that will be applied to the vehicle body while making sure not to touch the adhesional surface.
   2. Attach the claw and install the back door outside lower garnish sub-assembly LH to the vehicle body.
   3. Press the double-sided tape by lightly pressing against the back door outside lower garnish sub-assembly LH with hands.
   4. Connect the connector.
