Installation [02/2024 - ]: Procedure

  1. INSTALL BACK WINDOW LOCK ASSEMBLY

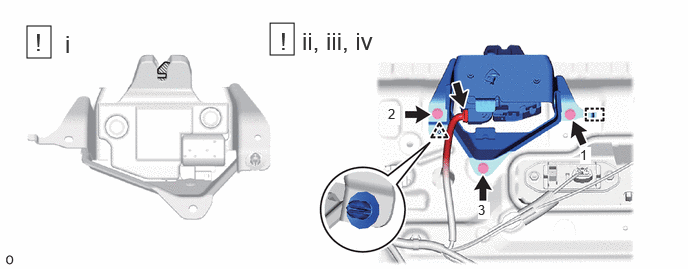

    1. Fig 1: Back Window Lock Assembly Tightening Sequence
      GTY1255040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      MP grease - -
      1. Apply MP grease to the sliding parts of the back window lock assembly.
      2. Attach the guide and clip, and install the back window lock assembly.
      3. Install the 3 bolts in the order shown in the illustration.

        Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      4. Connect the connector.
  2. INSTALL REAR WIPER MOTOR ASSEMBLY

    Refer to INSTALLATION [02/2024 - ]
