Removal [02/2024 - ]: Procedure

  1. REMOVE STEP SUB-ASSEMBLY LH
    1. w/ Illumination:

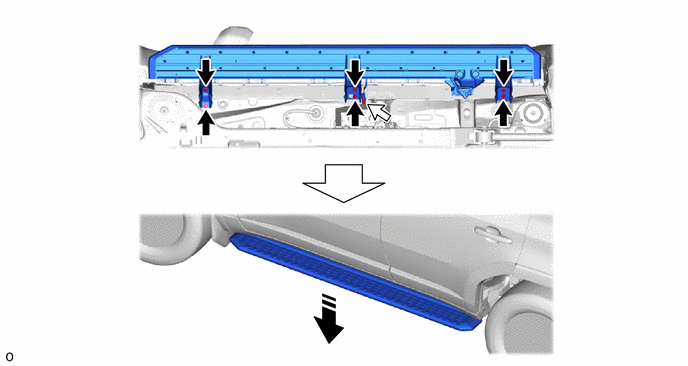

      GTY1227027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Bolt
      Connector - -
    2. w/o Illumination:

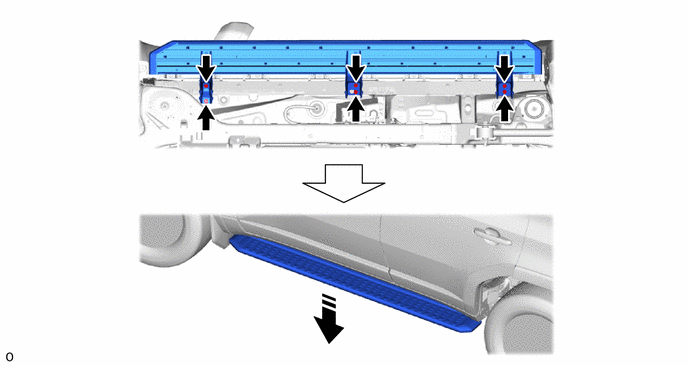

      GTY1224449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Bolt
