Removal [02/2024 - ]: Procedure

NOTE: When removing parts with double-sided tape applied, heat the portion of the parts with tape residue with a heat light if the double-sided tape is difficult to remove.

Standard Value

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

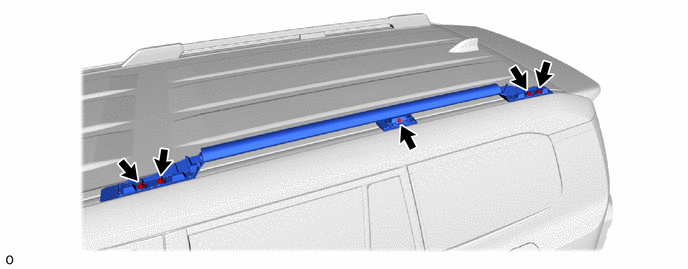

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

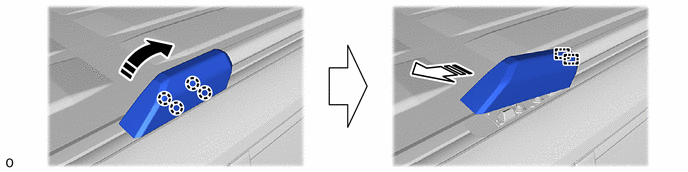

   Remove in this Direction (1)

   Remove in this Direction (2)

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

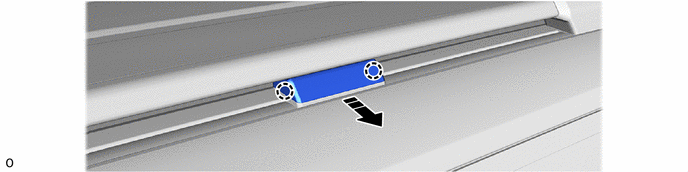

   Remove in this Direction

   -

   -

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

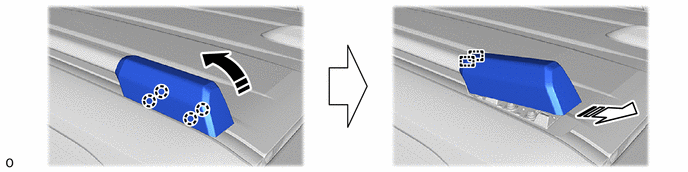

   Remove in this Direction (1)

   Remove in this Direction (2)

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

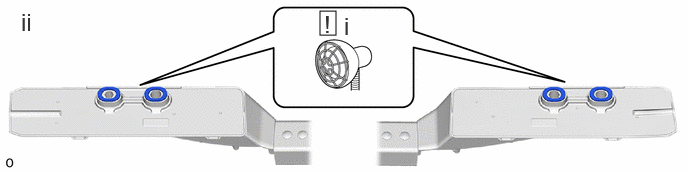

   1. Heat the adhesive of the No. 2 roof carrier seal using a heat light.
   2. Remove the 4 No. 2 roof carrier seals.

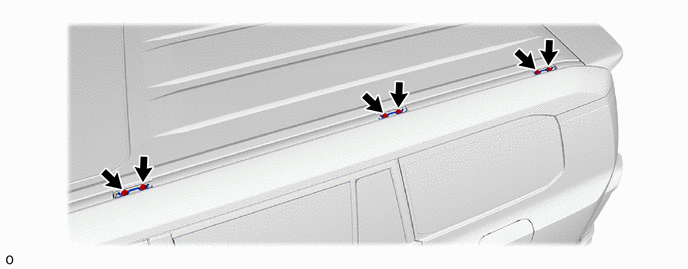

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to REMOVAL [02/2024 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

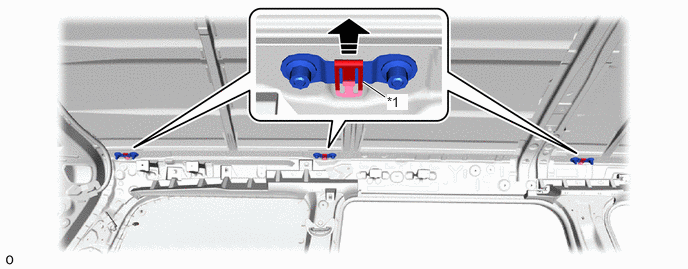

   *1	INNER ROOF RACK RETAINER	-	-
   	Remove in this Direction	-	-
