Disassembly [02/2024 - ]: Procedure

  1. REMOVE FRONT ROOF RACK LEG CUSHION LH
    1. GTY1213198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE CENTER ROOF RACK LEG CUSHION LH
    1. GTY1213199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR ROOF RACK LEG CUSHION LH
    1. GTY1213200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

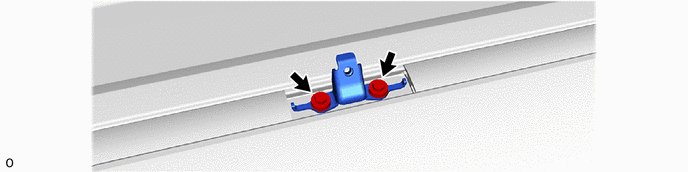

  4. REMOVE NO. 2 ROOF DRIP SIDE FINISH MOULDING RETAINER
    1. GTY1222211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
