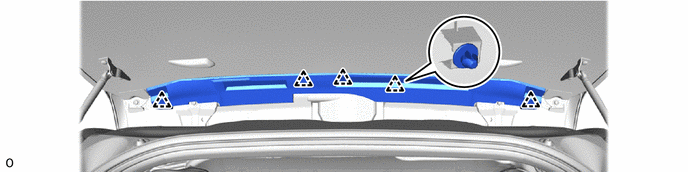

  1. REMOVE REAR SPOILER NO. 1 COVER
    1. GTY1222192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

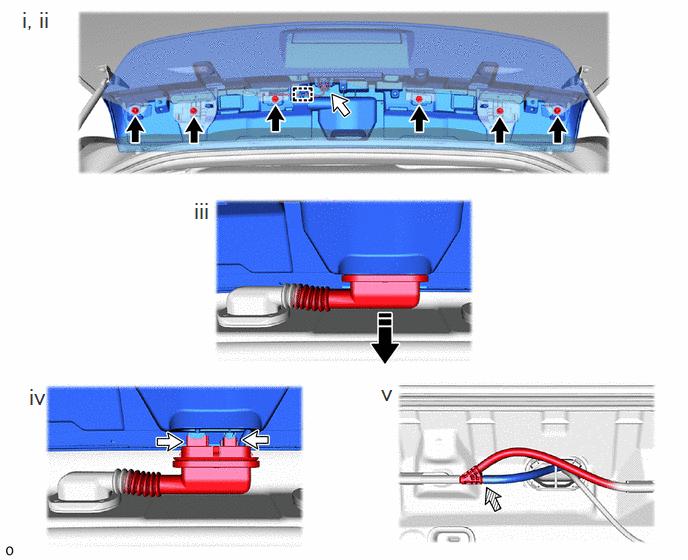

  2. REMOVE REAR SPOILER SUB-ASSEMBLY
    1. GTY1226254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Bolt
      Connector Hose
      1. Disconnect the connector and remove the guide.
      2. Remove the 6 bolts.
      3. Remove the wiring harness grommet as shown in the illustration.
      4. Disconnect the 2 connectors.
      5. Remove the hose.
    2. GTY1219987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

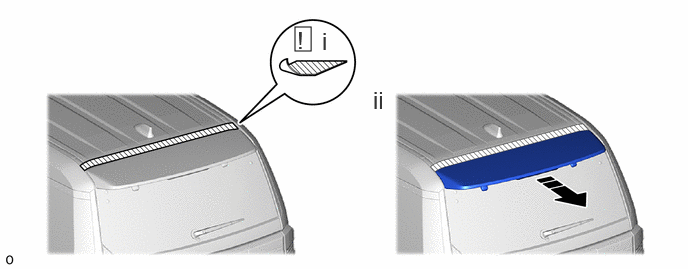

      Remove in this Direction - -
      1. Close the back door and put protective tape around the rear spoiler sub-assembly.
      2. Remove the rear spoiler sub-assembly as shown in the illustration.
