Caution / Notice / Hint

HINT:

• If the bumper is damaged, there is a possibility that the installation area of the blind spot monitor sensor may be deformed and the blind spot monitor system may not operate correctly, so visually inspect the blind spot monitor sensor installation area (frame, stud bolt) to make sure it is not dented or bent.
• If the visual inspection finds a problem, check the installation condition of the blind spot monitor sensor, and adjust the installation position of the blind spot monitor sensor as necessary.
  • Target Adjustment (Triangle Target):

    Refer to TARGET ADJUSTMENT(TRIANGLE TARGET) [02/2024 - ]

  • Driving Adjustment:

    Refer to DRIVING ADJUSTMENT [02/2024 - ]

• When the rear bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform ultrasonic sensor detection angle measurement.

  Refer to CALIBRATION [02/2024 - ]

COMPONENTS (REMOVAL)

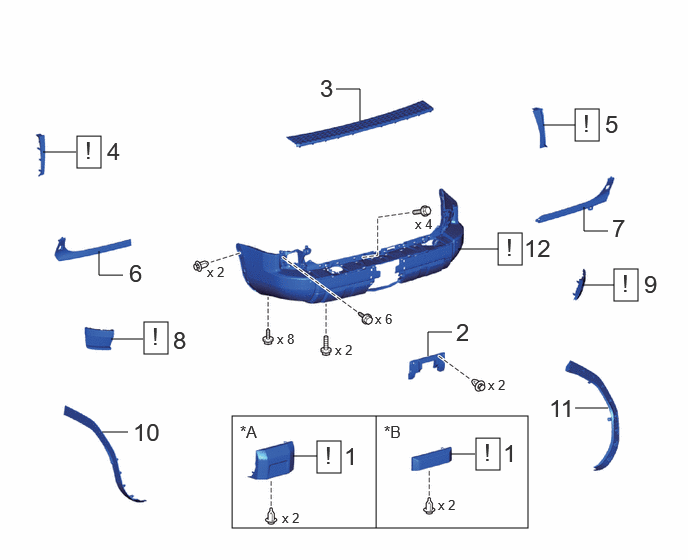

Fig 1: Rear Bumper Removal Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	REAR BUMPER LOWER COVER	52169C	See step  1	-	-
2	REAR NO. 2 STEP COVER	51776B	-	-	-
3	REAR BUMPER STEP	52351	-	-	-
4	REAR COMBINATION LIGHT COVER LH	81498	See step  4	-	-
5	REAR COMBINATION LIGHT COVER RH	81497	See step  4	-	-
6	REAR BUMPER CORNER EXTENSION LH	52166B	-	-	-
7	REAR BUMPER CORNER EXTENSION RH	52165D	-	-	-
8	REAR BUMPER FILLER LH	52553	See step  8	-	-
9	REAR BUMPER FILLER RH	52552	See step  8	-	-
10	QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH	75606A	-	-	-
11	QUARTER OUTSIDE MOULDING SUB-ASSEMBLY RH	75605A	-	-	-
12	REAR BUMPER ASSEMBLY	-	See step  12	-	-
