COMPONENTS (REASSEMBLY)

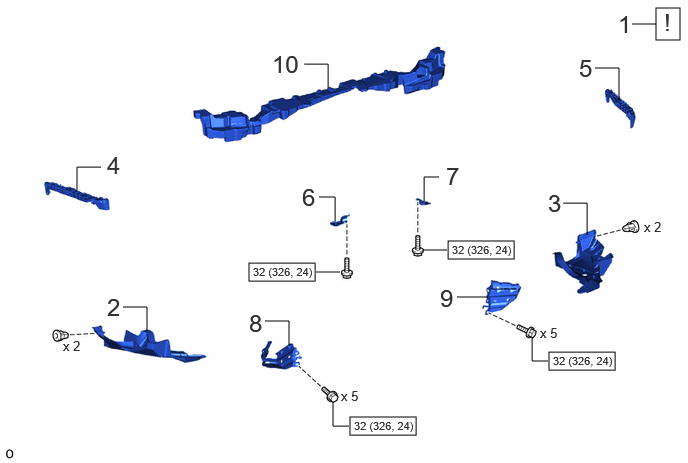

| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | PRECAUTION | - | See step 1 | - | - |
| 2 | NO. 2 LUGGAGE COMPARTMENT SIDE COVER PROTECTOR | 58724E | - | - | - |
| 3 | NO. 1 LUGGAGE COMPARTMENT SIDE COVER PROTECTOR | 58723C | - | - | - |
| 4 | REAR BUMPER SIDE SUPPORT LH | 52156A | - | - | - |
| 5 | REAR BUMPER SIDE SUPPORT RH | 52155A | - | - | - |
| 6 | REAR BUMPER BAR REINFORCEMENT LH | 52174D | - | - | - |
| 7 | REAR BUMPER BAR REINFORCEMENT RH | 52173D | - | - | - |
| 8 | REAR BUMPER SIDE MOUNTING BRACKET ASSEMBLY LH | 52190 | - | - | - |
| 9 | REAR BUMPER SIDE MOUNTING BRACKET ASSEMBLY RH | 52180 | - | - | - |
| 10 | REAR BUMPER ENERGY ABSORBER | 52615 | - | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

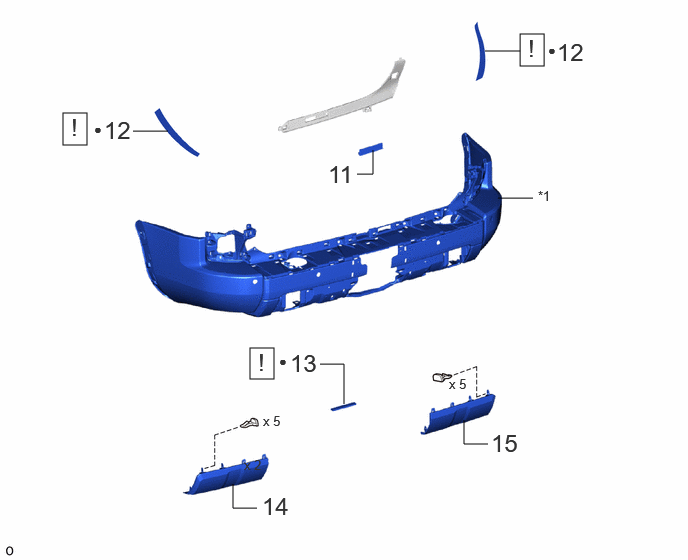

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 11 | REAR BUMPER PLATE RH | 52163A | - | - | - |
| 12 | MOULDING TAPE | 75896F | See step 12 | - | - |
| 13 | REAR BUMPER CENTER PAD | 52461 | See step 13 | - | - |
| 14 | SIDE BUMPER GUARD LH | 52952 | - | - | - |
| 15 | SIDE BUMPER GUARD RH | 52951 | - | - | - |
| *1 | REAR BUMPER COVER | - | - |
| • | Non-reusable part | - | - |

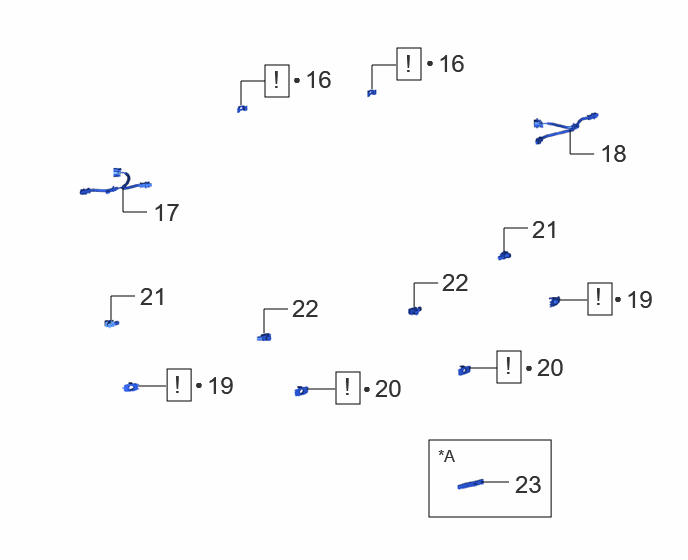

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 16 | ULTRASONIC SENSOR CLIP | - | See step 16 | - | - |
| 17 | NO. 3 LUGGAGE ROOM WIRE | 82183 | - | - | - |
| 18 | NO. 2 LUGGAGE ROOM WIRE | 82182 | - | - | - |
| 19 | REAR CORNER ULTRASONIC SENSOR RETAINER | 89C48A | See step 19 | - | - |
| 20 | REAR CENTER ULTRASONIC SENSOR RETAINER | 89C48B | See step 20 | - | - |
| 21 | REAR CORNER ULTRASONIC SENSOR | 89342 | - | - | - |
| 22 | REAR CENTER ULTRASONIC SENSOR | 89342A | - | - | - |
| 23 | NO. 2 BLE INDOOR DIGITAL KEY RECEIVER ASSEMBLY | 890G0A | - | - | - |
| *A | w/ Digital Key System | - | - |
| • | Non-reusable part | - | - |
