Removal [02/2024 - ]: Procedure

  1. REMOVE FRONT FENDER MUDGUARD LH
    1. for Type A:

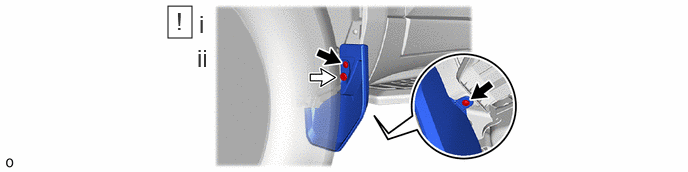

      GTY1221206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw Clip
      1. Using a 4 mm hexagon socket wrench, remove the 2 screws.
      2. Remove the clip and front fender mudguard LH.
    2. for Type B:

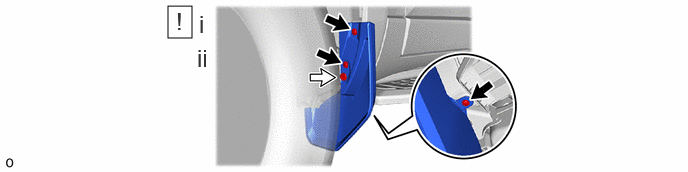

      GTY1221211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw Clip
      1. Using a 4 mm hexagon socket wrench, remove the 3 screws.
      2. Remove the clip and front fender mudguard LH.
