Removal [02/2024 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [02/2024 - ]

  2. REMOVE RADIATOR SHUTTER ASSEMBLY

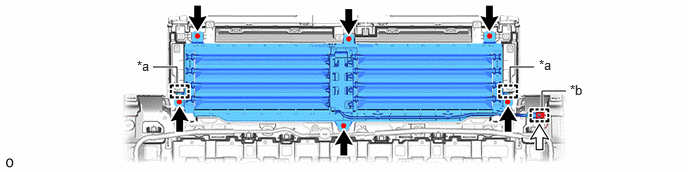

    1. GTY1225762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Guide *b Clamp
      Bolt Connector
