Disassembly [02/2024 - ]: Procedure

REMOVE NO. 2 RADIATOR GRILLE SEAL

NOTE:

When removing the No. 2 radiator grille seal, if the double-sided tape is difficult to remove, heat the adhesive of the No. 2 radiator grille seal using a heat light.

Standard Value

Part	Temperature
No. 2 Radiator Grille Seal	20 to 30°C (68 to 86°F)

WARNING:

Do not touch the heat light and heated parts.
Touching the heat light may result in burns.
Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

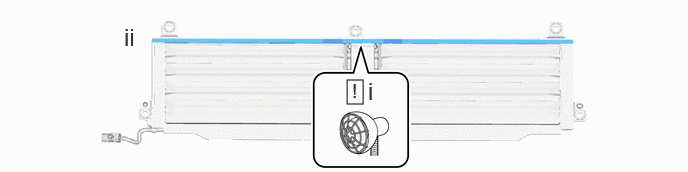

*a	Heated Part
*b	Heat Light

NOTE:

Do not heat the No. 2 radiator grille seal excessively.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Heat the adhesive of the No. 2 radiator grille seal using a heat light.
Remove the 2 No. 2 radiator grille seals.

REMOVE NO. 1 RADIATOR GRILLE SEAL

NOTE:

When removing the No. 1 radiator grille seal, if the double-sided tape is difficult to remove, heat the adhesive of the No. 1 radiator grille seal using a heat light.

Standard Value

Part	Temperature
No. 1 Radiator Grille Seal	20 to 30°C (68 to 86°F)

WARNING:

Do not touch the heat light and heated parts.
Touching the heat light may result in burns.
Touching heated parts for a long time may result in burns.

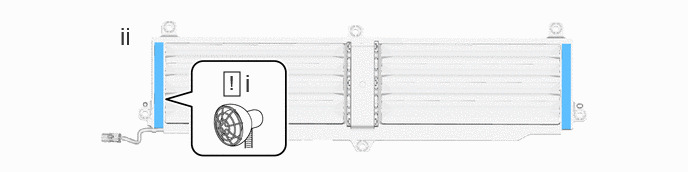

*a	Heated Part
*b	Heat Light

NOTE:

Do not heat the No. 1 radiator grille seal excessively.

Heat the adhesive of the No. 1 radiator grille seal using a heat light.
Remove the No. 1 radiator grille seal.
