Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the front door belt moulding assembly LH removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedures | Necessary Procedures | Effect/Inoperative Function when Necessary Procedures are not Performed | Link |
|---|---|---|---|
|
Initialize power window control system |
|
Refer to REGISTRATION [02/2024 - ] |
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
HINT:
- When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedures are not Performed Necessary Procedures Link Front camera system Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. Refer to INITIALIZATION [02/2024 - ] - Learning completes when vehicle is operated normally
Effect/Inoperative Function when Necessary Procedures are not Performed Necessary Procedures Link Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. - Power back door system Fully close the back door by hand.
HINT:
Initialization is not necessary if the above procedures are performed while the back door is closed.Refer to INITIALIZATION [02/2024 - ]
- Learning completes when vehicle is driven
- Use the same procedure for the RH and LH sides.
- Use the same procedure described for the LH side.

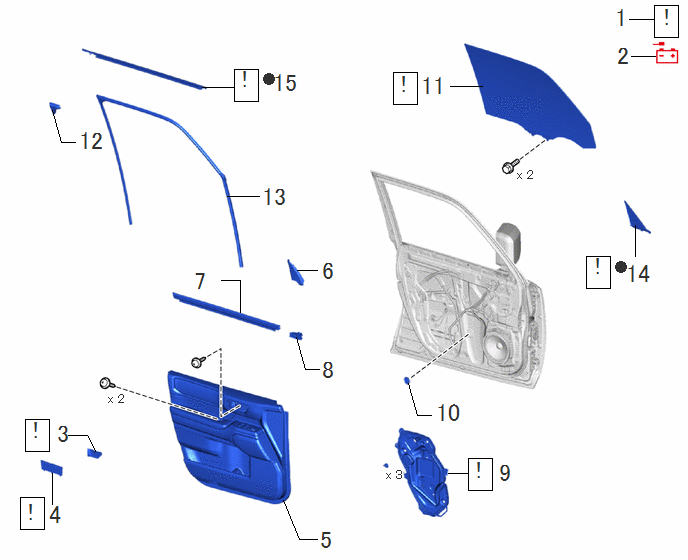

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | PRECAUTION | - | See step 1 | - | - |
| 2 | DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL | - | - | - | - |
| 3 | FRONT DOOR UPPER TRIM COVER LH | 67782 | See step 3 | - | - |
| 4 | FRONT DOOR ARMREST COVER SUB-ASSEMBLY LH | 74038 | See step 4 | - | - |
| 5 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH | 67602 | - | - | - |
| 6 | FRONT DOOR LOWER FRAME BRACKET GARNISH LH | 67492A | - | - | - |
| 7 | FRONT DOOR GLASS INNER WEATHERSTRIP LH | 68172A | - | - | - |
| 8 | FRONT DOOR REAR OUTSIDE SEAL LH | 67852D | - | - | - |
| 9 | FRONT DOOR SERVICE HOLE COVER LH | 67832 | See step 9 | - | - |
| 10 | HOLE PLUG | - | - | - | - |
| 11 | FRONT DOOR GLASS SUB-ASSEMBLY LH | 68102 | See step 11 | - | - |
| 12 | DOOR FRAME GARNISH LH | 67664C | - | - | - |
| 13 | FRONT DOOR GLASS RUN LH | 68151E | - | - | - |
| 14 | FRONT DOOR FRONT LOWER FRAME UPPER COVER LH | 67496C | See step 14 | - | - |
| 15 | FRONT DOOR BELT MOULDING LH | 75712B | See step 15 | - | - |
| • | Non-reusable part | - | - |
