The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the front bumper assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedures	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
Front television camera assembly (Including removal and installation) Radiator grille assembly (Including removal and installation) Front bumper assembly (Including removal and installation)	Front television camera view adjustment	Panoramic view monitor system Multi-terrain monitor system	Refer to BEFORE STARTING ADJUSTMENT [02/2024 - ]
Front television camera assembly, radiator grille assembly or front bumper assembly Rear television camera assembly Side television camera assembly LH or outer rear view mirror assembly LH Side television camera assembly RH or outer rear view mirror assembly RH	Television camera view adjustment HINT: Replacement or removal and installation of 2 or more parts	Panoramic view monitor system Multi-terrain monitor system	Refer to BEFORE STARTING ADJUSTMENT [02/2024 - ]
Radiator shutter assembly	Change grille shutter control modes and/or perform initialization	Grille shutter system	Refer to INITIALIZATION [02/2024 - ]

HINT:

When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform millimeter wave radar sensor adjustment.
- Target Adjustment (Triangle Target):
  Refer to TARGET ADJUSTMENT(TRIANGLE TARGET) [02/2024 - ]
- Target Adjustment (Flat Surface Target):
  Refer to TARGET ADJUSTMENT(FLAT SURFACE TARGET) [02/2024 - ]
- Driving Adjustment:
  Refer to DRIVING ADJUSTMENT [02/2024 - ]
If the bumper is damaged, there is a possibility that the installation area of the front side radar sensor may be deformed and the front side radar sensor system may not operate correctly, so visually inspect the front side radar sensor installation area (headlight, frame, bracket, stud bolt) to make sure it is not dented or bent.
If a problem is found during the visual inspection, check the installation condition of the front side radar sensor, and adjust the installation position of the front side radar sensor as necessary.
- Target Adjustment (Triangle Target):
  Refer to TARGET ADJUSTMENT(TRIANGLE TARGET) [02/2024 - ]
- Driving Adjustment:
  Refer to DRIVING ADJUSTMENT [02/2024 - ]
When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform ultrasonic sensor detection angle measurement.
Refer to CALIBRATION [02/2024 - ]

COMPONENTS (REMOVAL)

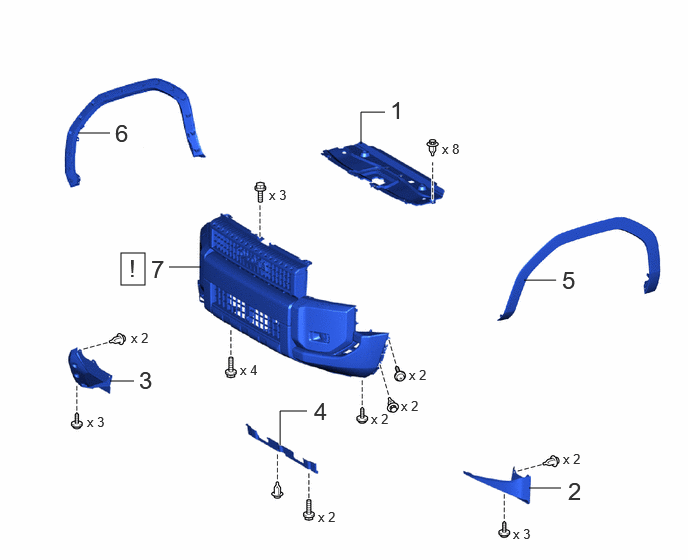

Fig 1: Front Bumper Removal Components

Procedure		Part Name Code
1	UPPER RADIATOR SUPPORT SEAL	53292A	-	-	-
2	FRONT SPOILER NO. 1 BRACKET LH	76863A	-	-	-
3	FRONT SPOILER NO. 1 BRACKET RH	76862A	-	-	-
4	FRONT BUMPER GUARD BASE COVER	52437B	-	-	-
5	FRONT FENDER MOULDING SUB-ASSEMBLY LH	75602A	-	-	-
6	FRONT FENDER MOULDING SUB-ASSEMBLY RH	75601A	-	-	-
7	FRONT BUMPER ASSEMBLY	-	See step 7	-	-
