Reassembly [02/2024 - ]: Procedure

  1. PRECAUTION
    NOTE:

    When installing parts with double-sided tape, heat the portion with adhesive and the application surface of the parts and with a heat light.

    Standard Value

    Part Temperature
    Metal parts 40 to 60°C (104 to 140°F)
    Resin parts 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the parts excessively.

  2. INSTALL FRONT BUMPER SIDE RETAINER LH

    Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

  3. INSTALL FRONT BUMPER SIDE RETAINER RH
    1. Use the same procedure described for the LH side.
  4. INSTALL FRONT SIDE RADAR SENSOR
    Refer to PROCEDURE - Step 1
  5. INSTALL FRONT BUMPER ARM SUB-ASSEMBLY LH
    1. Fig 1: Front Bumper Arm Sub-Assembly LH Tightening Sequence
      GTY1226093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Attach the guide and install the front bumper arm sub-assembly LH with the 4 bolts in the order shown in the illustration.

        Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  6. INSTALL FRONT BUMPER ARM SUB-ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  7. INSTALL FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

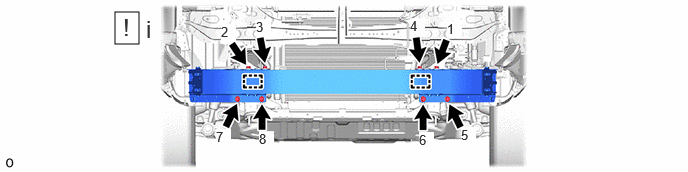

    1. Fig 2: Front Bumper Reinforcement Sub-Assembly Tightening Sequence
      GTY1222733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Attach the guide and install the front bumper reinforcement sub-assembly with the 8 bolts in the order shown in the illustration.

        Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  8. INSTALL FRONT BUMPER MOUNTING BRACKET

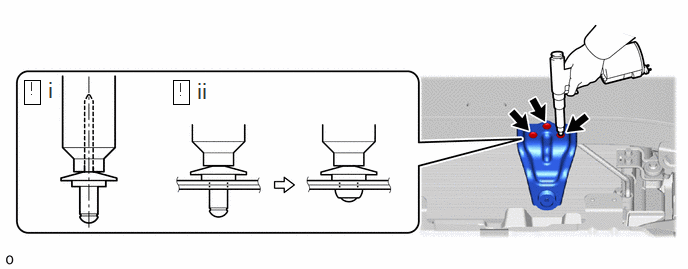

    1. GTY1224532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the No. 3 nose piece to an air riveter and insert the mandrel section of a new 6.4 mm rivet into the nose piece.
      2. Press the rivets perpendicularly to the installation holes. Using the air riveter, install the front bumper mounting bracket with the 3 rivets.

        HINT:

        Pull the trigger again to cut off the rivet if it is not cut off.

    2. Use the same procedure for the other side.
  9. INSTALL FRONT BUMPER NO. 2 RETAINER BRACKET

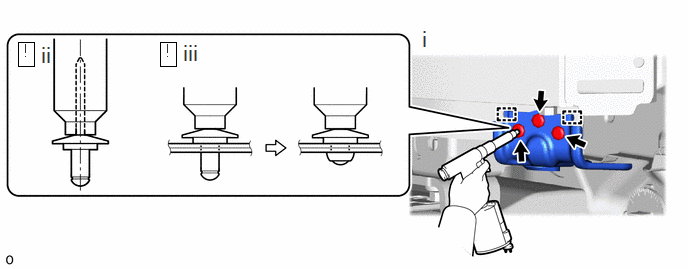

    1. GTY1221100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Attach the guide and temporarily install the front bumper No. 2 retainer bracket.
      2. Install the No. 3 nose piece to an air riveter and insert the mandrel section of a new 6.4 mm rivet into the nose piece.
      3. Press the rivets perpendicularly to the installation holes. Using the air riveter, install the 3 rivets.

        HINT:

        Pull the trigger again to cut off the rivet if it is not cut off.

  10. INSTALL FRONT BUMPER NO. 1 RETAINER BRACKET
    1. Use the same procedure described for the front bumper No. 2 retainer bracket.
  11. INSTALL FRONT BUMPER LOWER ABSORBER
  12. INSTALL NO. 2 COOL AIR INTAKE DUCT
  13. INSTALL NO. 1 COOL AIR INTAKE DUCT
  14. INSTALL FRONT BUMPER UPPER CENTER RETAINER

    Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

  15. INSTALL FRONT BUMPER ENERGY ABSORBER

    Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

  16. INSTALL NO. 2 RADIATOR AIR GUIDE
  17. INSTALL NO. 2 RADIATOR AIR GUIDE
  18. INSTALL FRONT SPOILER SIDE PROTECTOR LH
  19. INSTALL FRONT SPOILER SIDE PROTECTOR RH
  20. INSTALL NO. 2 RADIATOR GRILLE GARNISH
  21. INSTALL NO. 2 RADIATOR GRILLE SEAL
  22. INSTALL RADIATOR GRILLE SEAL
  23. INSTALL FRONT CENTER BUMPER SUB-ASSEMBLY
  24. INSTALL FOG LIGHT COVER LH
  25. INSTALL FOG LIGHT COVER RH
  26. INSTALL SIDE BUMPER SUB-ASSEMBLY LH
  27. INSTALL SIDE BUMPER SUB-ASSEMBLY RH
  28. INSTALL NO. 1 MOULDING TAPE

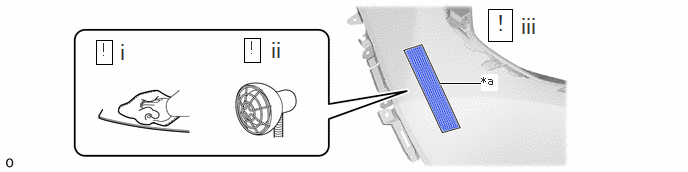

    1. GTY1225047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark-off Line - -
      1. Clean the surface of the front bumper extension sub-assembly LH.

        1. Using a heat light, heat the front bumper extension sub-assembly LH surface.

        2. Remove any remaining double-sided tape from the front bumper extension sub-assembly LH.

        3. Wipe off any tape adhesive residue with cleaner.

        NOTE:
        • Installing the No. 1 moulding tape with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
        • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
        • Clean the surface even when using a new part.
      2. Using a heat light, heat the front bumper extension sub-assembly LH and a new No. 1 moulding tape.
      3. Align the No. 1 moulding tape with the mark-off line on the front bumper extension sub-assembly LH and install it as shown in the illustration.

        HINT:

        Apply pressure so that it does not lift up from the front bumper extension sub-assembly LH.

    2. Use the same procedure for the other side.
  29. INSTALL FRONT BUMPER GARNISH LH
  30. INSTALL FRONT BUMPER GARNISH
  31. INSTALL FRONT BUMPER EXTENSION LH
  32. INSTALL FRONT BUMPER EXTENSION RH
  33. INSTALL FRONT BUMPER GUARD
  34. INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET
  35. INSTALL NO. 1 RADIATOR GRILLE GARNISH (w/ Garnish)
  36. INSTALL RADIATOR GRILLE MOULDING
  37. INSTALL RADIATOR GRILLE
  38. INSTALL NO. 4 ENGINE ROOM WIRE
  39. INSTALL NO. 2 RADIATOR GRILLE RETAINER
  40. INSTALL RADIATOR GRILLE BRACKET
  41. INSTALL NO. 1 RADIATOR GRILLE RETAINER
  42. INSTALL NO. 2 RADIATOR GRILLE BRACKET
  43. INSTALL FOG LIGHT UNIT LH (w/ Fog Light)
  44. INSTALL FOG LIGHT UNIT RH (w/ Fog Light)
  45. INSTALL FRONT CENTER ULTRASONIC SENSOR RETAINER
    Refer to PROCEDURE - Step 2
  46. INSTALL FRONT CORNER ULTRASONIC SENSOR RETAINER
    1. Use the same procedure described for the front center ultrasonic sensor retainer.
  47. INSTALL FRONT CENTER ULTRASONIC SENSOR
  48. INSTALL FRONT CORNER ULTRASONIC SENSOR
  49. INSTALL FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)
  50. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    Refer to PROCEDURE - Step 1
  51. INSTALL RADIATOR SHUTTER ASSEMBLY

    See step  1
