Caution / Notice / Hint

COMPONENTS (REASSEMBLY)

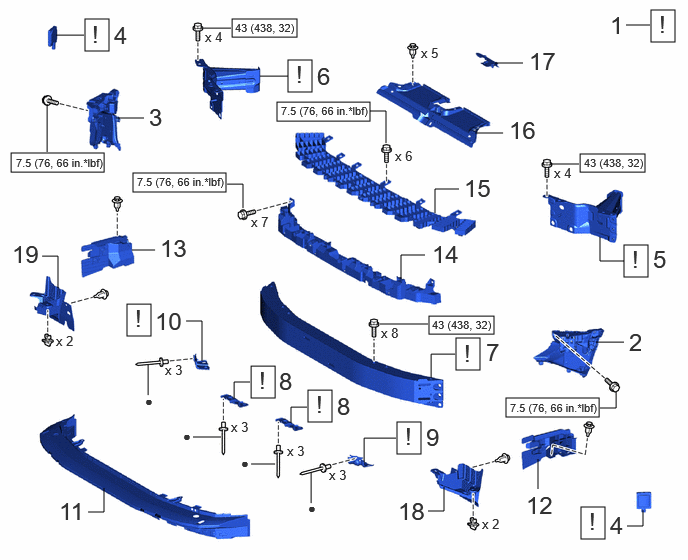

Fig 1: Front Bumper Reassembly Components With Torque Specifications (1 Of 6)
GTY1224089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
1 PRECAUTION - See step  1 - -
2 FRONT BUMPER SIDE RETAINER LH 52536 - - -
3 FRONT BUMPER SIDE RETAINER RH 52535 - - -
4 FRONT SIDE RADAR SENSOR 882B1 See step  4 - -
5 FRONT BUMPER ARM SUB-ASSEMBLY LH 52012A See step  5 - -
6 FRONT BUMPER ARM SUB-ASSEMBLY RH 52011A See step  5 - -
7 FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY 52021 See step  7 - -
8 FRONT BUMPER MOUNTING BRACKET 52147B See step  8 - -
9 FRONT BUMPER NO. 2 RETAINER BRACKET 52534 See step  9 - -
10 FRONT BUMPER NO. 1 RETAINER BRACKET 52533 See step  9 - -
11 FRONT BUMPER LOWER ABSORBER 52618 - - -
12 NO. 2 COOL AIR INTAKE DUCT 52812C - - -
13 NO. 1 COOL AIR INTAKE DUCT 52811B - - -
14 FRONT BUMPER UPPER CENTER RETAINER 52521 - - -
15 FRONT BUMPER ENERGY ABSORBER 52611 - - -
16 NO. 2 RADIATOR AIR GUIDE 16594B - - -
17 NO. 2 RADIATOR AIR GUIDE 16594A - - -
18 FRONT SPOILER SIDE PROTECTOR LH 76878C - - -
19 FRONT SPOILER SIDE PROTECTOR RH 76877E - - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

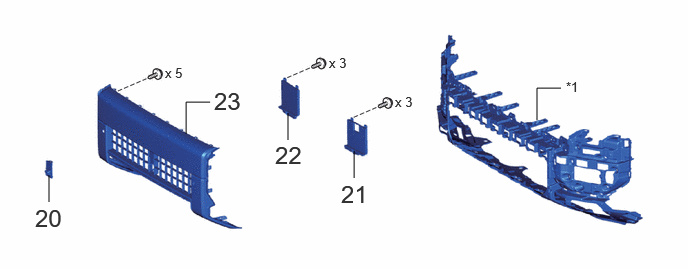

Fig 2: Front Bumper Reassembly Components (2 Of 6)
GTY1225390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
20 NO. 2 RADIATOR GRILLE GARNISH 53142C - - -
21 NO. 2 RADIATOR GRILLE SEAL 53156H - - -
22 RADIATOR GRILLE SEAL 53155G - - -
23 FRONT CENTER BUMPER SUB-ASSEMBLY 52104A - - -
*1 FRONT BUMPER COVER - -

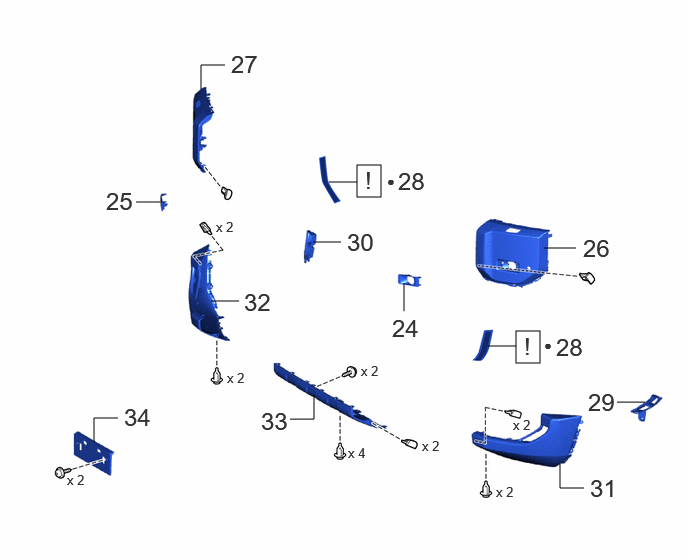

Fig 3: Front Bumper Reassembly Components (3 Of 6)
GTY1226636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
24 FOG LIGHT COVER LH 81482C - - -
25 FOG LIGHT COVER RH 81481E - - -
26 SIDE BUMPER SUB-ASSEMBLY LH 52902A - - -
27 SIDE BUMPER SUB-ASSEMBLY RH 52901B - - -
28 NO. 1 MOULDING TAPE 75895K See step  28 - -
29 FRONT BUMPER GARNISH LH 52712A - - -
30 FRONT BUMPER GARNISH 52711A - - -
31 FRONT BUMPER EXTENSION LH 52113D - - -
32 FRONT BUMPER EXTENSION RH 52112D - - -
33 FRONT BUMPER GUARD 52411 - - -
34 FRONT BUMPER EXTENSION MOUNTING BRACKET 52114A - - -
• Non-reusable part - -

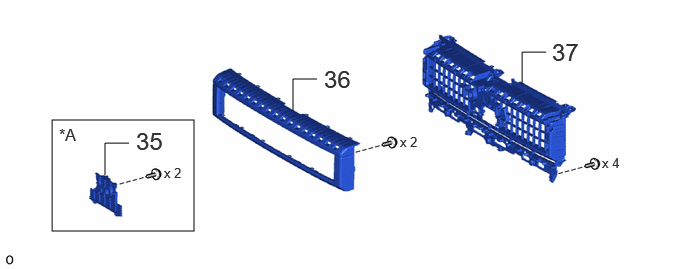

Fig 4: Front Bumper Reassembly Components (4 Of 6)
GTY1225706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
35 NO. 1 RADIATOR GRILLE GARNISH 53141B - - -
36 RADIATOR GRILLE MOULDING 53121A - - -
37 RADIATOR GRILLE 53111 - - -
*A w/ Garnish - -
Fig 5: Front Bumper Reassembly Components (5 Of 6)
GTY1223008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
38 NO. 4 ENGINE ROOM WIRE 82114 - - -
39 NO. 2 RADIATOR GRILLE RETAINER 53118D - - -
40 RADIATOR GRILLE BRACKET 53115B - - -
41 NO. 1 RADIATOR GRILLE RETAINER 53117C - - -
42 NO. 2 RADIATOR GRILLE BRACKET 53116B - - -

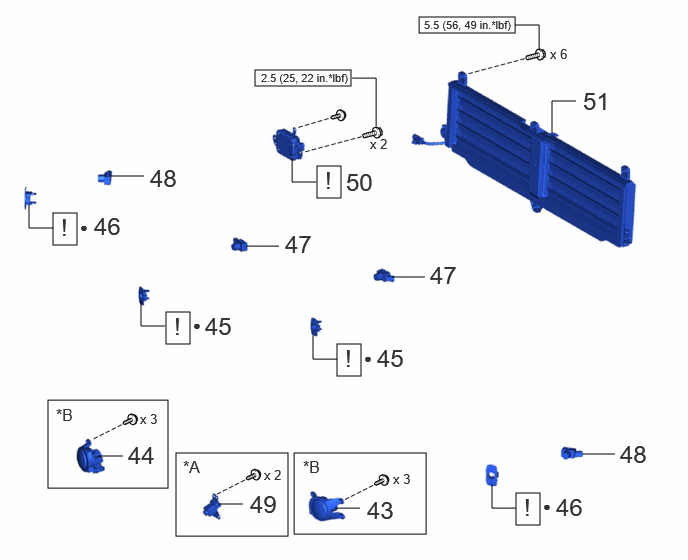

Fig 6: Front Bumper Reassembly Components With Torque Specifications (6 Of 6)
GTY1226637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
43 FOG LIGHT UNIT LH 81221C - - -
44 FOG LIGHT UNIT RH 81211C - - -
45 FRONT CENTER ULTRASONIC SENSOR RETAINER 89C48E See step  45 - -
46 FRONT CORNER ULTRASONIC SENSOR RETAINER 89C48D See step  45 - -
47 FRONT CENTER ULTRASONIC SENSOR 89341L - - -
48 FRONT CORNER ULTRASONIC SENSOR 89341K - - -
49 FRONT TELEVISION CAMERA ASSEMBLY 86790B - - -
50 MILLIMETER WAVE RADAR SENSOR ASSEMBLY 88211B See step  50 - -
51 RADIATOR SHUTTER ASSEMBLY 53180D - - -
*A w/ Panoramic View Monitor System *B w/ Fog Light
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
