COMPONENTS (DISASSEMBLY)

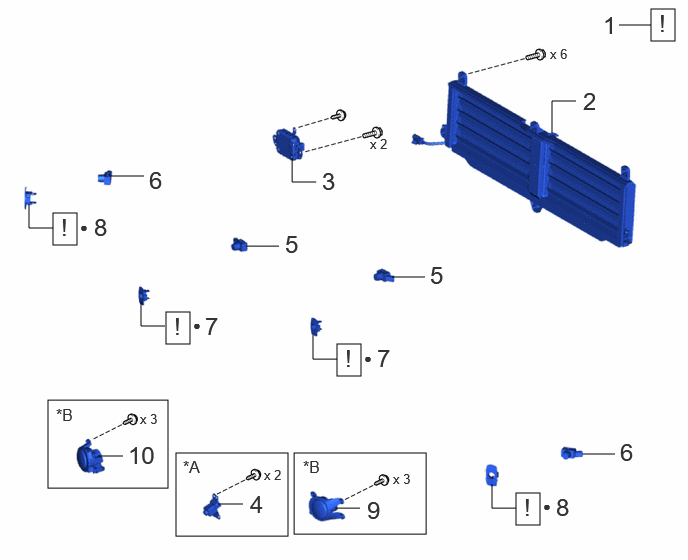

Fig 1: Front Bumper Disassembly Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	PRECAUTION	-	See step 1	-	-
2	RADIATOR SHUTTER ASSEMBLY	53180D	-	-	-
3	MILLIMETER WAVE RADAR SENSOR ASSEMBLY	88211B	-	-	-
4	FRONT TELEVISION CAMERA ASSEMBLY	86790B	-	-	-
5	FRONT CENTER ULTRASONIC SENSOR	89341L	-	-	-
6	FRONT CORNER ULTRASONIC SENSOR	89341K	-	-	-
7	FRONT CENTER ULTRASONIC SENSOR RETAINER	89C48E	See step 7	-	-
8	FRONT CORNER ULTRASONIC SENSOR RETAINER	89C48D	See step 7	-	-
9	FOG LIGHT UNIT LH	81221C	-	-	-
10	FOG LIGHT UNIT RH	81211C	-	-	-

*A	w/ Panoramic View Monitor System	*B	w/ Fog Light
•	Non-reusable part	-	-

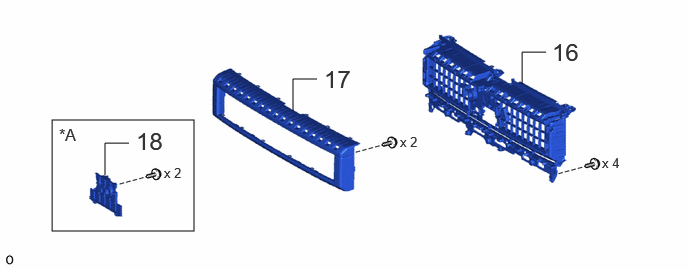

Fig 2: Front Bumper Disassembly Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

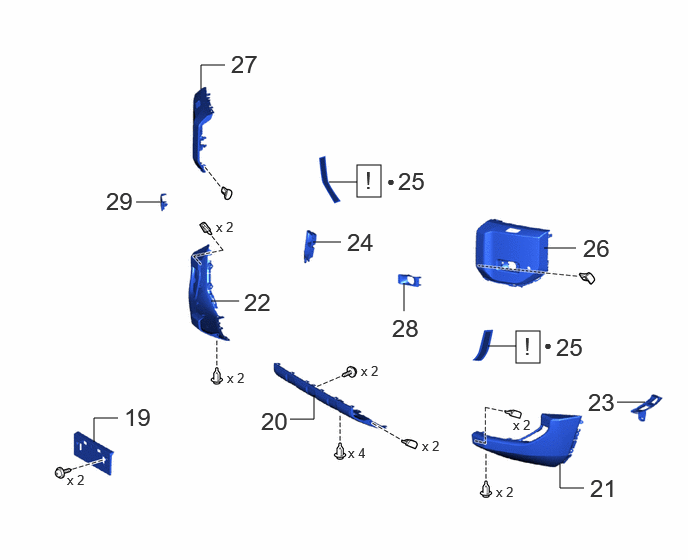

Fig 3: Front Bumper Disassembly Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Garnish

Fig 4: Front Bumper Disassembly Components (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
19	FRONT BUMPER EXTENSION MOUNTING BRACKET	52114A	-	-	-
20	FRONT BUMPER GUARD	52411	-	-	-
21	FRONT BUMPER EXTENSION LH	52113D	-	-	-
22	FRONT BUMPER EXTENSION RH	52112D	-	-	-
23	FRONT BUMPER GARNISH LH	52712A	-	-	-
24	FRONT BUMPER GARNISH	52711A	-	-	-
25	NO. 1 MOULDING TAPE	75895K	See step 25	-	-
26	SIDE BUMPER SUB-ASSEMBLY LH	52902A	-	-	-
27	SIDE BUMPER SUB-ASSEMBLY RH	52901B	-	-	-
28	FOG LIGHT COVER LH	81482C	-	-	-
29	FOG LIGHT COVER RH	81481E	-	-	-

•

Non-reusable part

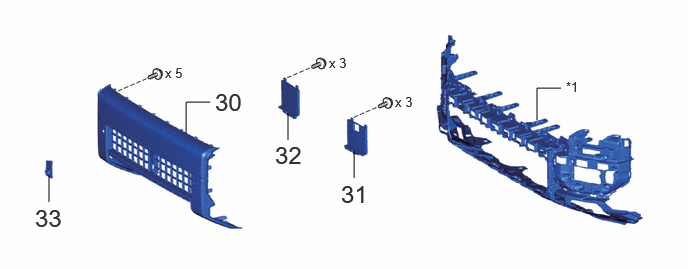

Fig 5: Front Bumper Disassembly Components (5 Of 6)

Procedure		Part Name Code
30	FRONT CENTER BUMPER SUB-ASSEMBLY	52104A	-	-	-
31	NO. 2 RADIATOR GRILLE SEAL	53156H	-	-	-
32	RADIATOR GRILLE SEAL	53155G	-	-	-
33	NO. 2 RADIATOR GRILLE GARNISH	53142C	-	-	-

FRONT BUMPER COVER

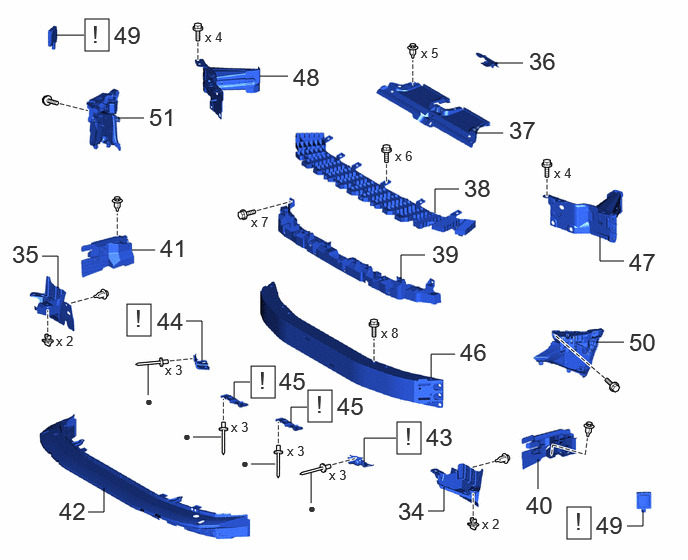

Fig 6: Front Bumper Disassembly Components (6 Of 6)

Procedure		Part Name Code
34	FRONT SPOILER SIDE PROTECTOR LH	76878C	-	-	-
35	FRONT SPOILER SIDE PROTECTOR RH	76877E	-	-	-
36	NO. 2 RADIATOR AIR GUIDE	16594A	-	-	-
37	NO. 2 RADIATOR AIR GUIDE	16594B	-	-	-
38	FRONT BUMPER ENERGY ABSORBER	52611	-	-	-
39	FRONT BUMPER UPPER CENTER RETAINER	52521	-	-	-
40	NO. 2 COOL AIR INTAKE DUCT	52812C	-	-	-
41	NO. 1 COOL AIR INTAKE DUCT	52811B	-	-	-
42	FRONT BUMPER LOWER ABSORBER	52618	-	-	-
43	FRONT BUMPER NO. 2 RETAINER BRACKET	52534	See step 43	-	-
44	FRONT BUMPER NO. 1 RETAINER BRACKET	52533	See step 43	-	-
45	FRONT BUMPER MOUNTING BRACKET	52147B	See step 45	-	-
46	FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY	52021	-	-	-
47	FRONT BUMPER ARM SUB-ASSEMBLY LH	52012A	-	-	-
48	FRONT BUMPER ARM SUB-ASSEMBLY RH	52011A	-	-	-
49	FRONT SIDE RADAR SENSOR	882B1	See step 49	-	-
50	FRONT BUMPER SIDE RETAINER LH	52536	-	-	-
51	FRONT BUMPER SIDE RETAINER RH	52535	-	-	-

•

Non-reusable part
