Adjustment [02/2024 - ]: Procedure

  1. INSPECT REAR DOOR

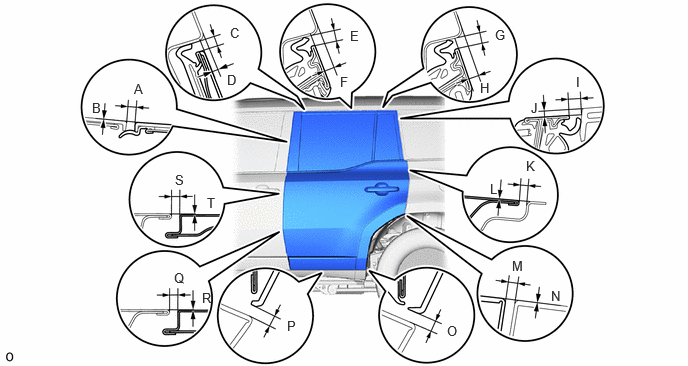

    1. Check that the clearance measurements of areas "A" to "T" are within the standard ranges.
      GTY1226334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Clearance

      Area Measurement Area Measurement
      A 2.5 to 6.5 mm (0.0984 to 0.2559 in.) B -2.0 to 2.0 mm (-0.079 to 0.079 in.)
      C 4.15 to 7.55 mm (0.163 to 0.297 in.) D 0.95 to 4.95 mm (0.037 to 0.195 in.)
      E 3.9 to 6.9 mm (0.154 to 0.272 in.) F 3.6 to 6.6 mm (0.142 to 0.260 in.)
      G 3.9 to 6.9 mm (0.154 to 0.272 in.) H 3.6 to 6.6 mm (0.142 to 0.260 in.)
      I 4.55 to 7.55 mm (0.179 to 0.297 in.) J 1.55 to 5.55 mm (0.0610 to 0.2185 in.)
      K 2.5 to 5.5 mm (0.0984 to 0.2165 in.) L -1.5 to 1.5 mm (-0.0591 to 0.0591 in.)
      M 3.0 to 7.0 mm (0.118 to 0.276 in.) N -2.0 to 2.0 mm (-0.079 to 0.079 in.)
      O 3.5 to 8.5 mm (0.138 to 0.335 in.) P 3.5 to 8.5 mm (0.138 to 0.335 in.)
      Q 3.0 to 5.4 mm (0.118 to 0.213 in.) R -1.2 to 1.2 mm (-0.0472 to 0.0472 in.)
      S 3.0 to 5.4 mm (0.118 to 0.213 in.) T -1.2 to 1.2 mm (-0.0472 to 0.0472 in.)
  2. PRECAUTION
    WARNING:

    Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

    Refer to PRECAUTION [02/2024 - ]

    GTY571595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [02/2024 - ]
  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    WARNING:
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to REMOVAL [02/2024 - ]

  4. ADJUST REAR DOOR LH

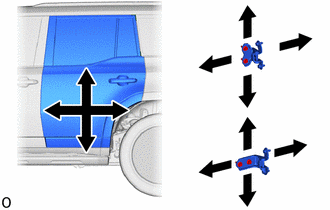

    1. Loosen the 4 hinge bolts on the vehicle body and adjust the door position.
      GTY1217556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the bolt hinge bolts after the adjustment.

      Torque: 26.0 N.m (265 kgf/cm, 19 ft.lbf)

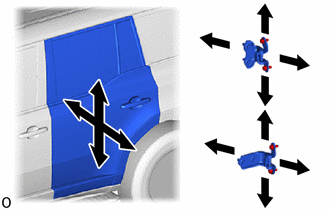

    3. Loosen the 4 hinge bolts on the door and adjust the door position.
      GTY1224587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Tighten the 4 hinge bolts on the door after adjustment.

      Torque: 21.0 N.m (214 kgf/cm, 15 ft.lbf)

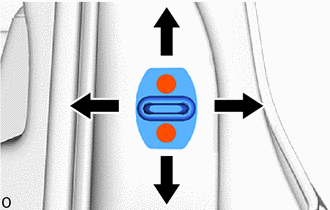

    5. Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.
      GTY1217553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Using a brass bar and a hammer, hit the striker to adjust its position.
    7. Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustments.

      Torque: 23.0 N.m (235 kgf/cm, 17 ft.lbf)

  5. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to INSTALLATION [02/2024 - ]

  6. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

    HINT:

    When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [02/2024 - ]

  7. INSPECT SRS WARNING LIGHT

    Refer to OPERATION CHECK [02/2024 - ]
