Removal [02/2024 - ]: Procedure

See step  1

See step  2

1. Use the same procedure as for the LH side.

See step  7

See step  8

WARNING: Do not perform work if the back door is not securely supported. The back door could fall, resulting in injury.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Grommet

   *b

   Hook

   1. Disconnect the connector.
   2. Detach the grommet.

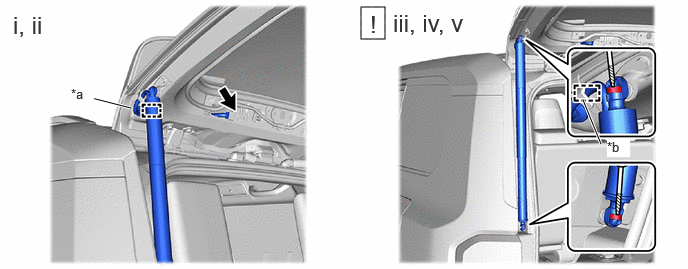

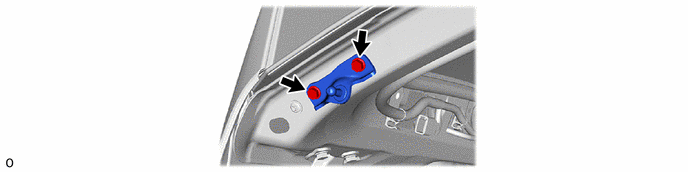

   3. Using a thin-bladed screwdriver with its tip wrapped in protective tape, slightly raise the 2 stop rings as shown in the illustration.
      NOTE:

      • Do not remove the stop rings from the power back door unit assembly LH. Raise the stop rings just enough to allow the ball joints to be detached.
      • Do not reuse the power back door unit assembly LH if a stop ring has been removed.

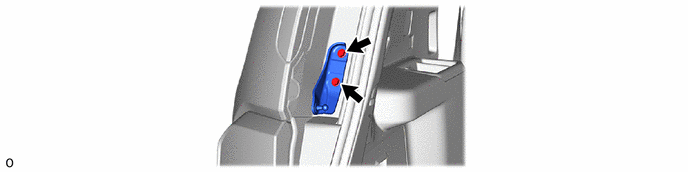

   4. Detach the 2 ball joints to remove the power back door unit assembly LH.
      NOTE:

      Remove the power back door unit assembly LH while supporting the back door by hand.

   5. Remove the wire harness from the power back door sensor assembly hook.
