The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the power back door unit assembly removal/installation are shown below.
NECESSARY PROCEDURE AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
|
Reset back door close position | Power back door system | Refer to INITIALIZATION [02/2024 - ] |
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
HINT:
- Use the same procedure for the RH and LH sides.
- The following procedure is for the LH side.

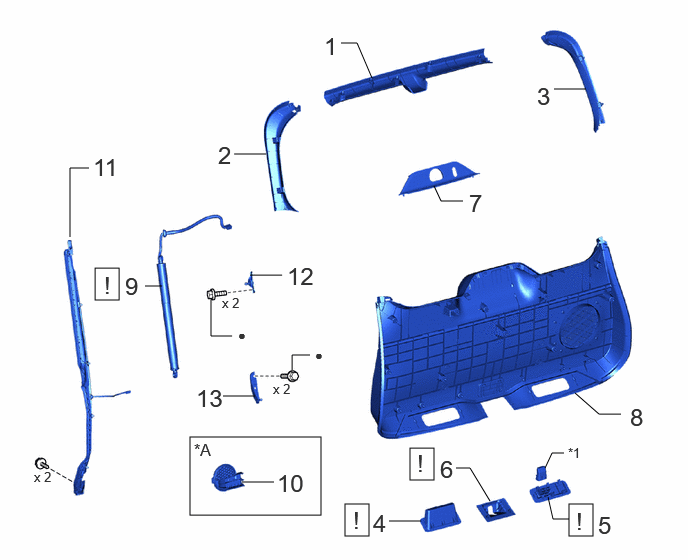

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | BACK DOOR CENTER GARNISH | 67939B | - | - | - |
| 2 | BACK DOOR SIDE GARNISH LH | 67938A | - | - | - |
| 3 | BACK DOOR SIDE GARNISH RH | 67937B | - | - | - |
| 4 | BACK DOOR FINISH COVER | 75837E | See step 4 | - | - |
| 5 | BACK DOOR INSIDE HANDLE | 69212C | See step 5 | - | - |
| 6 | BACK DOOR LOCK COVER | 69321 | See step 6 | - | - |
| 7 | BACK DOOR LOCK COVER | 64798 | - | - | - |
| 8 | BACK DOOR TRIM PANEL ASSEMBLY | 64780A | - | - | - |
| 9 | POWER BACK DOOR UNIT ASSEMBLY LH | 68920A | See step 9 | - | - |
| 10 | BACK DOOR NO. 4 SERVICE HOLE COVER | 68920 | - | - | - |
| 11 | POWER BACK DOOR SENSOR ASSEMBLY LH | 84280D | - | - | - |
| 12 | BACK DOOR UPPER DAMPER STAY BRACKET LH | 68946 | - | - | - |
| 13 | BACK DOOR LOWER DAMPER STAY BRACKET LH | 68948 | - | - | - |
| *A | w/ Cover | - | - |
| *1 | DOOR CONTROL SWITCH COVER | - | - |
| • | Non-reusable part | - | - |
