Removal [02/2024 - ]: Procedure

  1. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to REMOVAL [02/2024 - ]

  2. REMOVE FUEL FILLER OPENING LID LOCK COVER

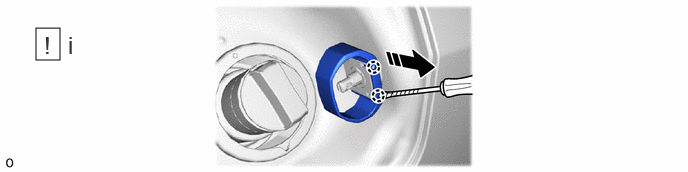

    1. GTY1221753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a screwdriver with its tip wrapped with protective tape, detach the claw and remove the fuel filler opening lid lock cover as shown in the illustration.
  3. REMOVE FUEL FILLER OPENING LID LOCK RETAINER

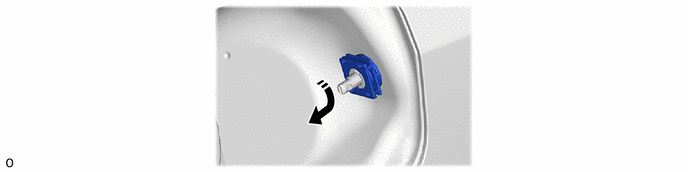

    1. GTY1225693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  4. REMOVE FUEL LID LOCK WITH MOTOR ASSEMBLY

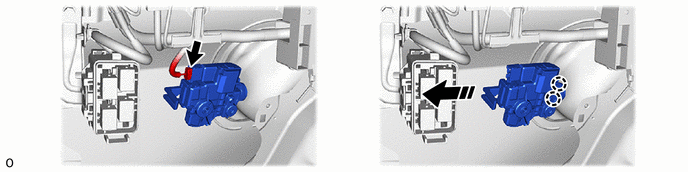

    1. GTY1224780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
