Caution / Notice / Hint

COMPONENTS (REMOVAL)

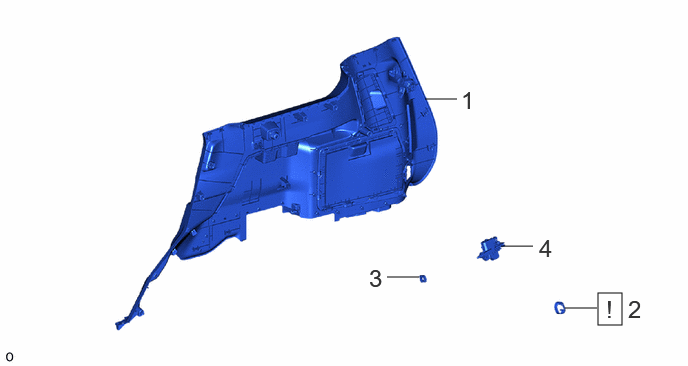

Fig 1: Fuel Lid Opener Motor Assembly Removal Components
GTY1225801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 DECK TRIM SIDE PANEL ASSEMBLY LH 64740C - - -
2 FUEL FILLER OPENING LID LOCK COVER 77378A See step  2 - -
3 FUEL FILLER OPENING LID LOCK RETAINER 77377 - - -
4 FUEL LID LOCK WITH MOTOR ASSEMBLY 77030A - - -
